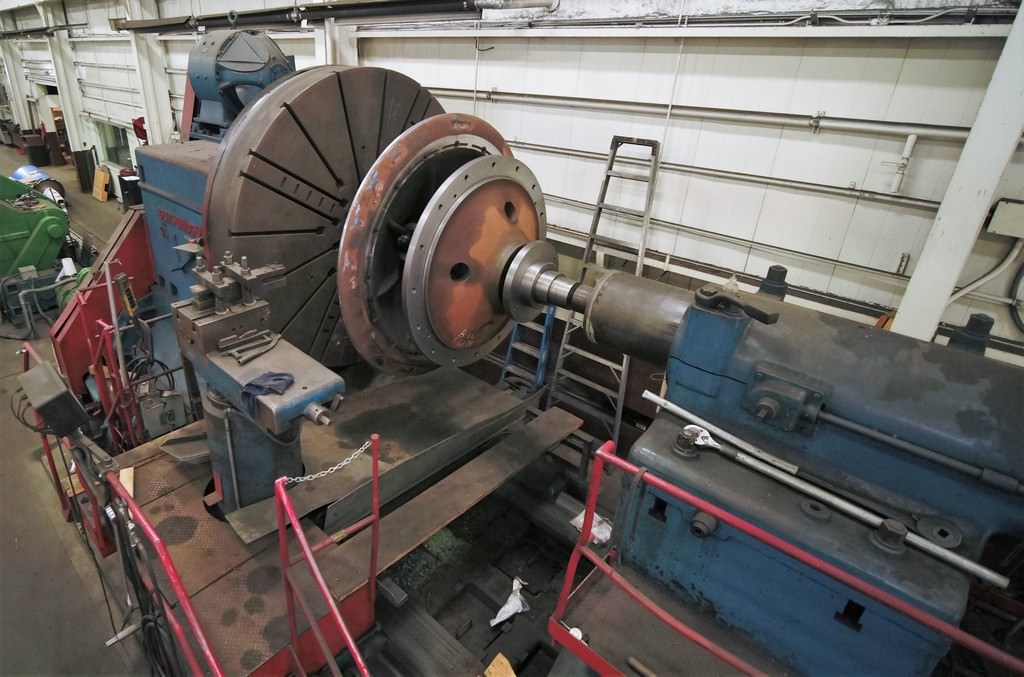

Betts 3658 MM x 18.29 M Engine Lathe

Model:
Heavy Duty
Age:
1955
Ref#:
27684
Prestige Equipment is the world's leading provider of Betts 3658 MM x 18.29 M Engine Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Product Specifications
Maximum Swing Over Bedways
4013 MM
Maximum Swing Over Carriage Wings
3150 MM
Distance Between Centers
18288 MM
Carriage Top Slide Travel
559 MM
Cross Slide Travel
1829 MM
Carriage Length on Bedways
2743 MM
Carriage Bridge Width
813 MM
Bed Width Over Outer Ways
2921 MM
Bed Length
23901 MM
Weight Between Centers, Unsupported
200 Tons
Weight Capacity w/Steady Rests
325 Tons
Speeds: (Low)
.5-15 RPM
(High)
2-60 RPM
Threading Range
1/2-56 TPI
Tailstock Quill Diameter
711 MM
Equipped With:
3658 MM Diameter Face Plate Chuck w/Jaws
Full Length Lead Screw Threading
Taper Attachment w/Power Positioning Motor
4-Axis Sony Digital Readout System w/Scales
Angular Swivel on Compound & Carriage
Steady Rests 229 MM to 1219 MM Capacity
60 Ton Steady Rest Capacity
Motorized Positioning of Carriage
Front and Back Carriages
Operators Platform with Pendant Operators Station
Right Hand and Left Hand Spindle Rotation
Motorized Quill
Farval Lubrication System
Full Length Chip Conveyor,
Coolant System
Hardened Ways on Bed & Carriage
Heavy Duty Casted Bed
Siemens Simoreg Microprocessor DC Drive S5-115U
Simatic S5 Programable DC Controler 460/230 Volt
149 KW Main Motor 230 Volt DC
All New Siemens Electrics In 1988
Originally Built For Turbine Mfg.
