CNC VERTICAL TURNING CENTERS

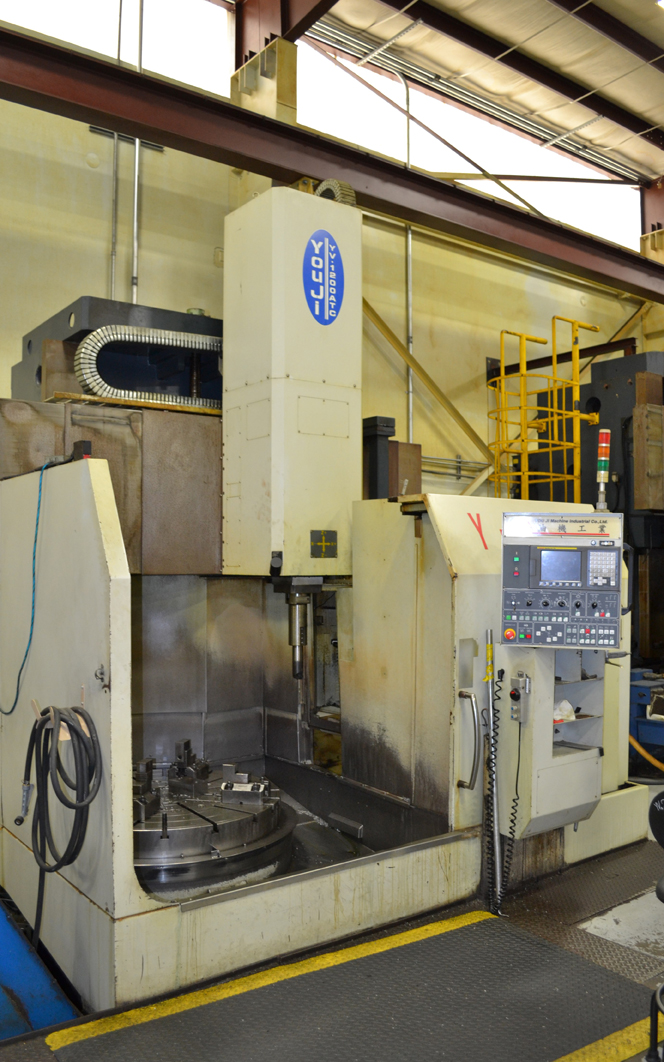

YOU JI YV-1200ATC VERTICAL TURNING CENTER, Fanuc Oi-TC, 49” Dia. Face Plate Type Chuck with 4-Jaws, 63” Swing, 47” Maximum Turning Height, Vertical Ram Head w/ 12 Position Automatic Tool Changer, Travels: Maximum Cross Travel (X Axis): -3.94”; + 34.5”, Cross Rail Vertical Travel: 31.5”, Vertical Travel of Ram (Z Axis): 35.94”, Table Speeds (2 Ranges): 1-350 RPM, Table Weight Capacity: 11,000 Lbs., Cutting Feed Rate: .01-197 IPM, Rapid Feed Rates: X-Axis 472 IPM, Z-Axis 394 IPM, Chip Conveyor, 60 HP Table Motor, S/N: 06VI2T1480 (2006)

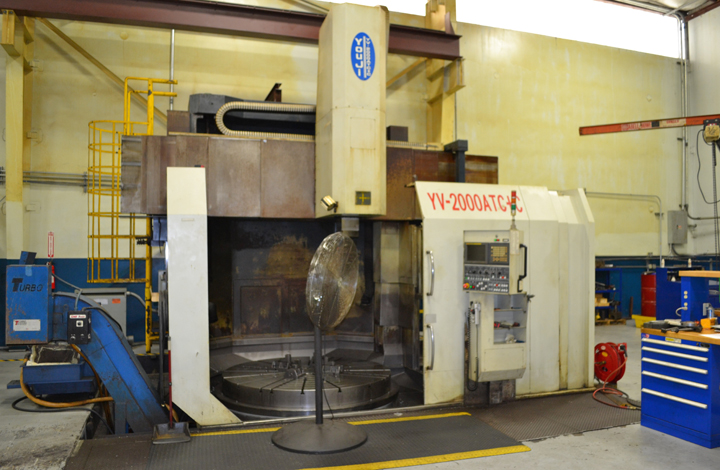

YOU JI YV-2000ATC + C VERTICAL TURNING CENTER With Live Milling, Fanuc 18i-TB, 78” Dia. Face Plate Type Chuck with 4-Jaws, 98.74” Swing, 78.74” Maximum Turning Height, Vertical Ram Head w/ 16 Position Automatic Tool Changer, Travels: Maximum Cross Travel (X Axis): -19.7”; + 53.1”, Cross Rail Vertical Travel: 45.27”, Vertical Travel of Ram (Z Axis): 37.40”, Table Speeds (2 Ranges): 2-200 RPM, Table Weight Capacity: 22,000 Lbs., C-Axis Contouring .001 Degree, Live Spindle Speeds (2 Ranges): 2-2400 RPM, 20 HP Live Spindle Motor, Cutting Feed Rate: .04-78 IPM, Rapid Feed Rates: X, Z Axis 394 IPM, Turbo Chip Conveyor, 75 HP Table Motor, S/N: 06N20TC1419 (2006)

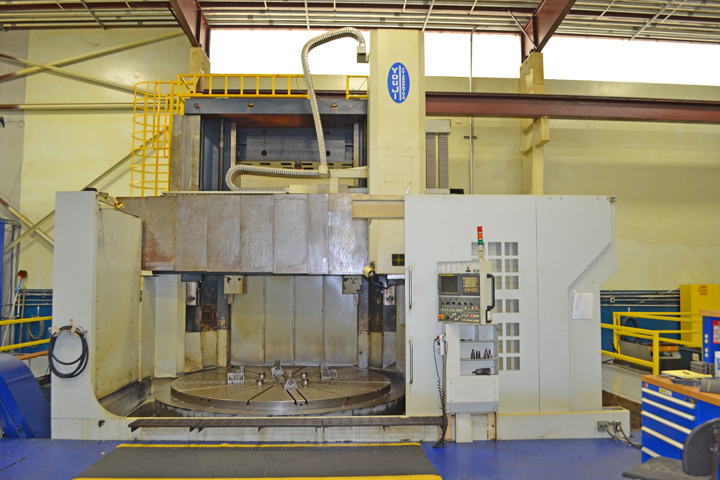

YOU JI YV-3000ATC + C VERTICAL TURNING CENTER With Live Milling, Fanuc 18i-TB, 118” Face Plate Type Chuck with 4-Jaws, 138” Swing, 90.55” Maximum Turning Height, Vertical Ram Head w/ 32 Station Automatic Tool Changer, Travels: Maximum Cross Travel (X Axis): -59.4”; + 71.8”, Cross Rail Vertical Travel: 55.11”, Vertical Travel of Ram (Z Axis): 59.05”, Table Speeds (2 Ranges): 1-120 RPM, Table Weight Capacity: 44,000 Lbs., C-Axis Contouring .001 Degree, Live Spindle Speeds (2 Ranges): 1-2400 RPM, 20 HP Live Spindle Motor, Cutting Feed Rate: .04-78 IPM, Rapid Feed Rates: X, Z Axis 394 IPM, Turbo Chip Conveyor, 100 HP Table Motor, S/N: 08V30TC1979 (2008)

CNC BRIDGE TYPE 4-AXIS VERTICAL MACHINING CENTER

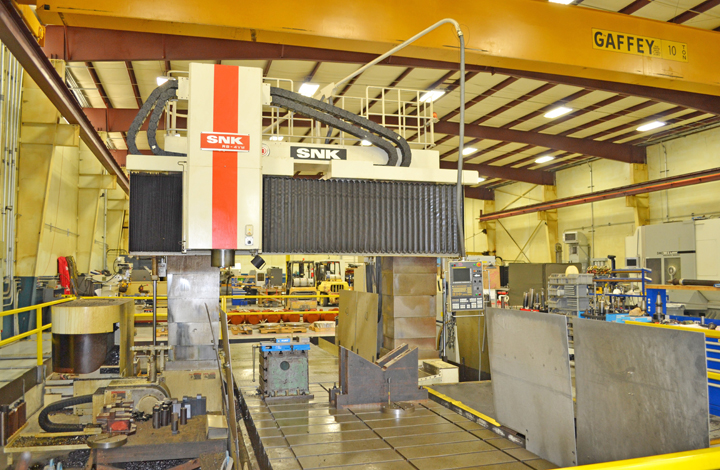

SNK RB4-VM CNC 5-FACE BRIDGE TYPE VERTICAL MACHINING CENTER, Fanuc 31i-A CNC Controls, 167.32” X-Axis Table Travel, 94.48” Y-Axis Spindle Head Travel, 23.62” Z-Axis Vertical Ram Travel, 43.30” W-Axis Cross Rail Vertical Travel, 94.48” Between Columns, 0-59.05” Spindle to Table Top, 78.74” x 157.48” T-Slotted Work Table, 33,000 Lbs. Table Weight Capacity, #50 Taper, Spindle Speeds: 40-6000 RPM, Auto Indexing Right Angle Head, 40-Station Automatic Tool Changer, Automatic Attachment Changer, Troyke 36” Dia. B-Axis Rotary Table, Dual Full Length Chip Conveyors, Chip Blaster High Pressure Coolant System, 30 HP Spindle Motor, S/N: 453070 (2008)

CNC UNIVERSAL 5-AXIS MACHINING CENTER

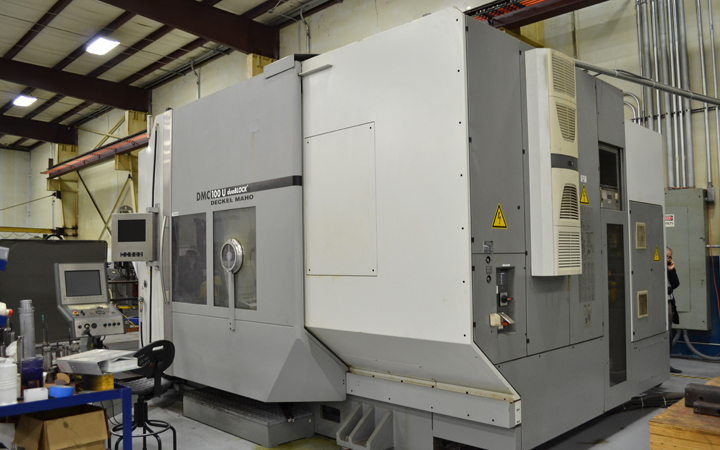

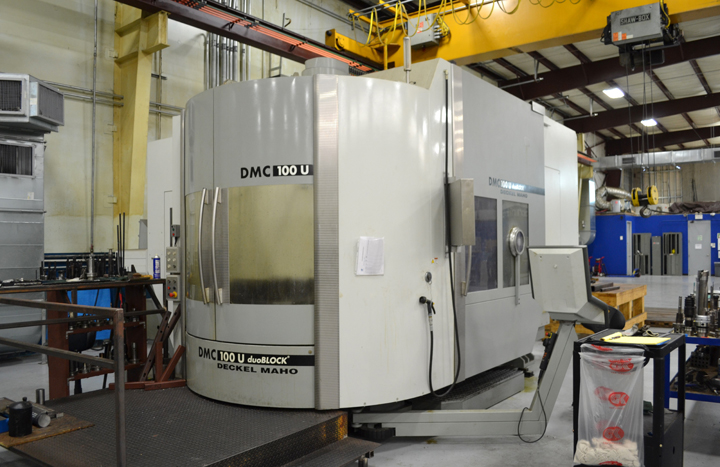

DMG DMC-100U duoBlock 5-AXIS MACHINING CENTER, Heidenhain MillPlus iT V600 CNC Control, A-Axis Swivel Milling Head, Travels: X-39.37”, Y-39.37”, Z-39.37”, (2) 43.3” x 35.4” Pallets, Max Table Load 3,300 Lbs., Max Table Speed 30 RPM, B-Axis Table Rotation (Full Contouring) .001 Degree, (2) C-Axis Vertical Rotary Tables, HSK100 Taper, Spindle Speeds to 10,000 RPM, 120 Position Automatic Tool Changer, Paper Filtration System, 37.5 HP Spindle Motor, S/N 1148-00051-3 (2005)

CNC HORIZONTAL LATHES

YAMA SEIKI GS-460 CNC Lathe, Fanuc 0i-TC CNC Control, 29.13” Max Swing, 24.95” Swing Over Saddle, 37.4” Max Turning Length, 8.07” Hole Thru Spindle, 21” SMW 3-Jaw Power Chuck, 12-Position Turret, Spindle Speeds to 900 RPM, Travels: X-13.38”, Z- +3.93/-34.64”, Tailstock, Chip Conveyor, 40 HP, S/N: 89A038 (2007)

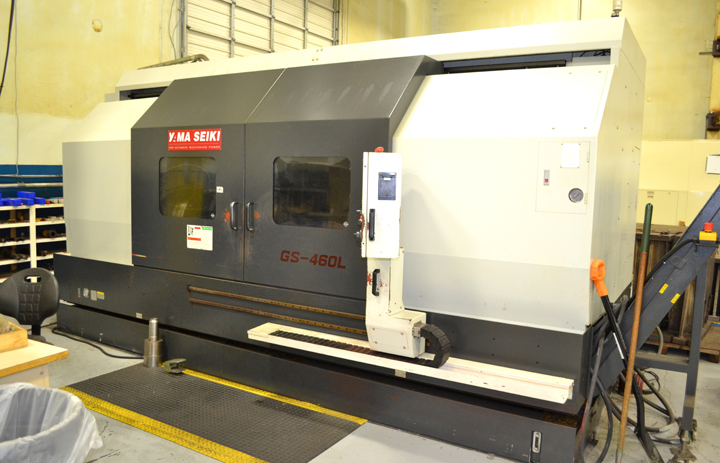

YAMA SEIKI GS-460L CNC Lathe, Fanuc 0i-TC CNC Control, 29.13” Max Swing, 24.95” Swing Over Saddle, 78.74” Max Turning Length, 8.07” Hole Thru Spindle, 21” 3-Jaw Power Chuck, 12-Position Turret, Spindle Speeds to 900 RPM, Travels: X-13.38”, Z- +3.93/-34.64”, Hydraulic Steady Rest, Tailstock, Chip Conveyor, 40 HP, S/N: (2007)

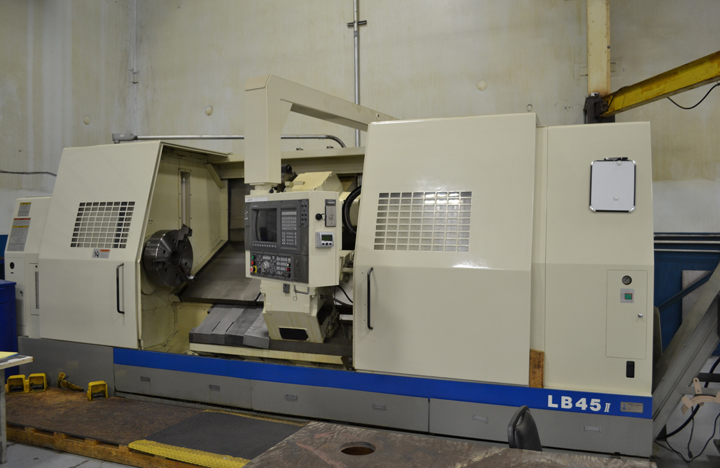

OKUMA LB 45II CNC Lathe, OSP 7000L CNC Control, 25.98” Max Turning Dia., 21.7” Swing Over Saddle, 81.10” Between Centers, 4.33” Spindle Bore, 21” 3-Jaw Power Chuck, 12-Position Turret, Spindle Speeds 2800 RPM, Travels: X-17.32”, Z- 81.10”, Tailstock, Chip Conveyor, 50 HP, S/N: 0054 (1997)
