Private Treaty Sale
Multi-Axis Large-Capacity CNC Machine Tools From Precision Aerospace Plant Available Now

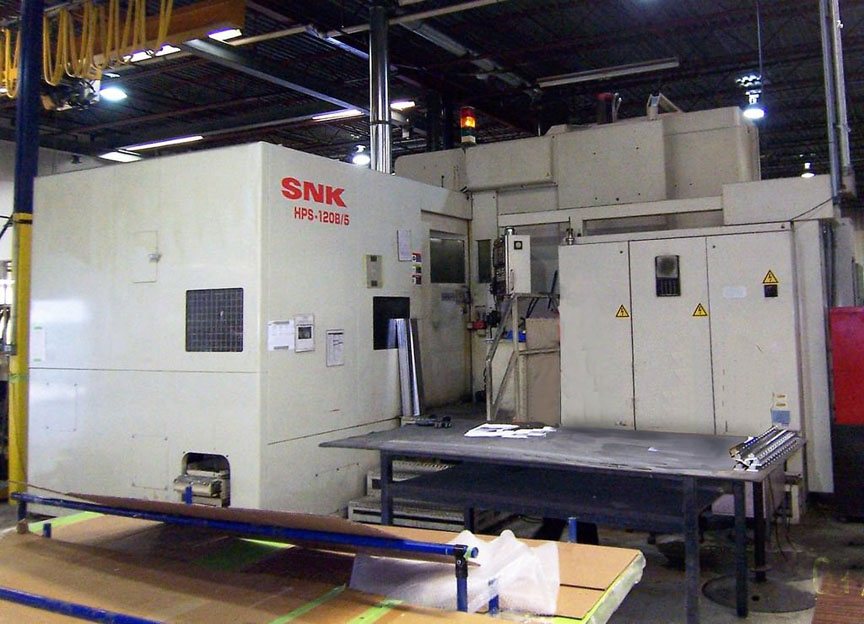

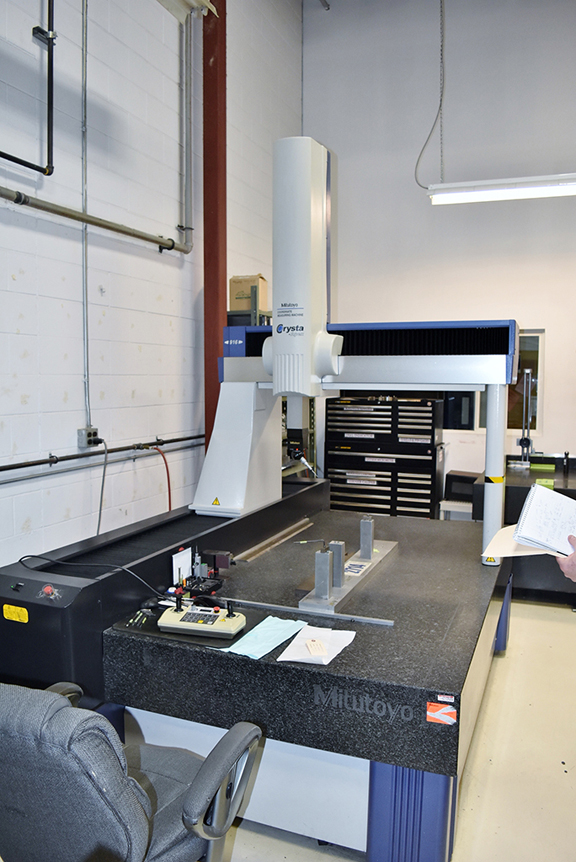

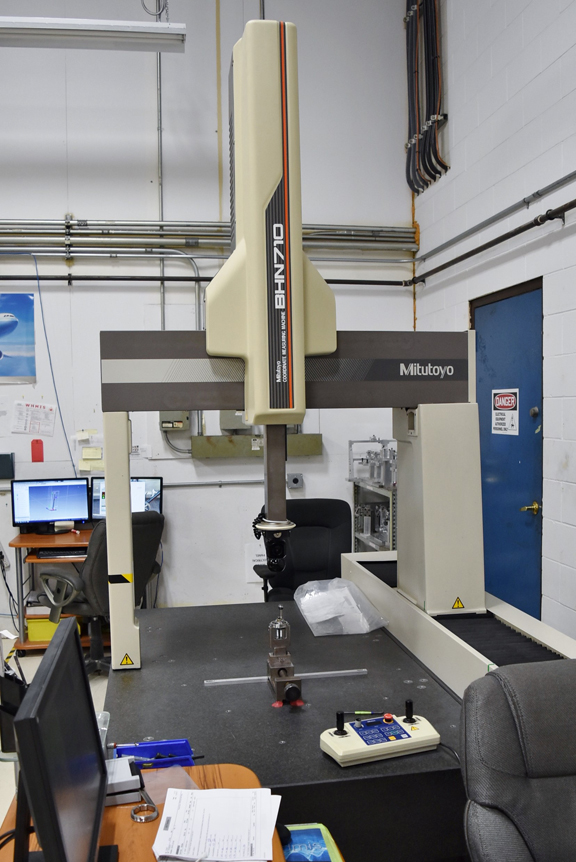

SNK HPS-120B CNC 5-Axis High Speed Twin-Pallet CNC Aerospace Profiler [2005]; MAZAK Integrex i400-ST 9-Axis CNC Turning & Milling Center [2011]; GROB G550 CNC 5-Axis Twin-Pallet Universal Machining Center [2014]; MAZAK Variaxis 630-5X CNC 5-Axis Twin-Pallet Vertical Machining Center (2008); CINCINNATI CNC High Performance 5-Axis 3-Spindle Gantry Profiler w/ 420” Travel; CINCINNATI 20V 5-Axis High Speed CNC Vertical Aerospace Profiler [2002], BROWN & SHARPE DEA Alpha 20.33.15 Gantry Type CMM; MITUTOYO Crysta-Apex 916 CMM; MITUTOYO BHN-710 CMM
March 03, 2020
11:00AM EST
North America
Contact for Sale
Inspection Date
By Appointment
Sale Information

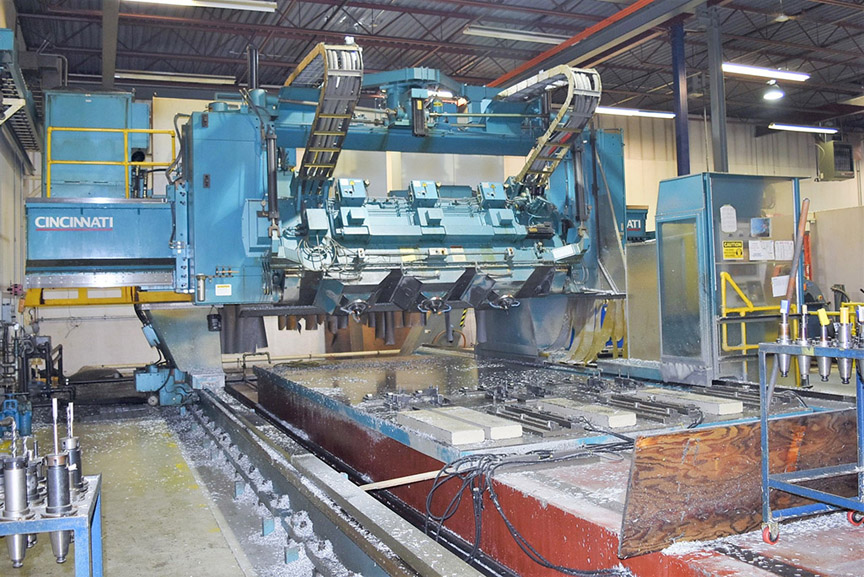

- CINCINNATI MILACRON High Performance 5-Axis 3-Spindle CNC Aerospace Gantry Profiler, Acramatic 2100 CNC Control, 480” Rail Length, Travels: X-324”, Y-110”, Z-28”, A/B Axis (Spindle Tilt): +/- 30 Degrees, 324” x 120” Table, 10,000 RPM, 40” Between Spindles, 100 HP (Each Spindle), CAT-50, Coolant Thru Spindle, Chip Conveyor, New 2001 VIEW

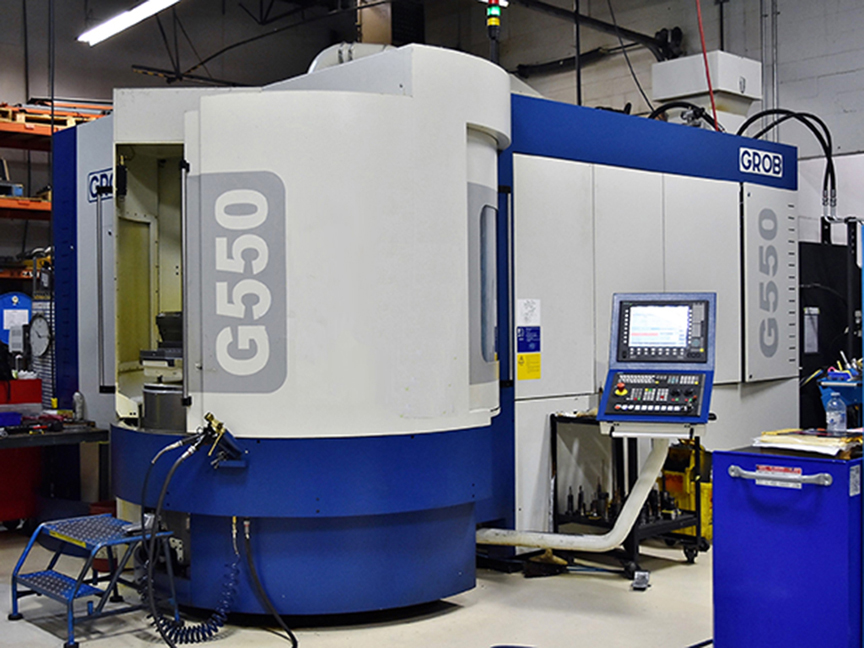

- GROB G550 5-Axis Universal Machining Center: Siemens 840Dsl CNC Control, Travels: X-31.5”, Y-40.15”, Z-40.1”, with Tilting Rotary Table, (2) 27.56” Dia. Tables, A-Axis Table Swivel: -180 / +45 Degrees, B-Axis Table Rotation: 0.001 Degrees, 16,000 RPM, 120 ATC, HSK-A63 Taper, 43 HP, High Pressure Coolant System, Chip Conveyor, New 2014 VIEW

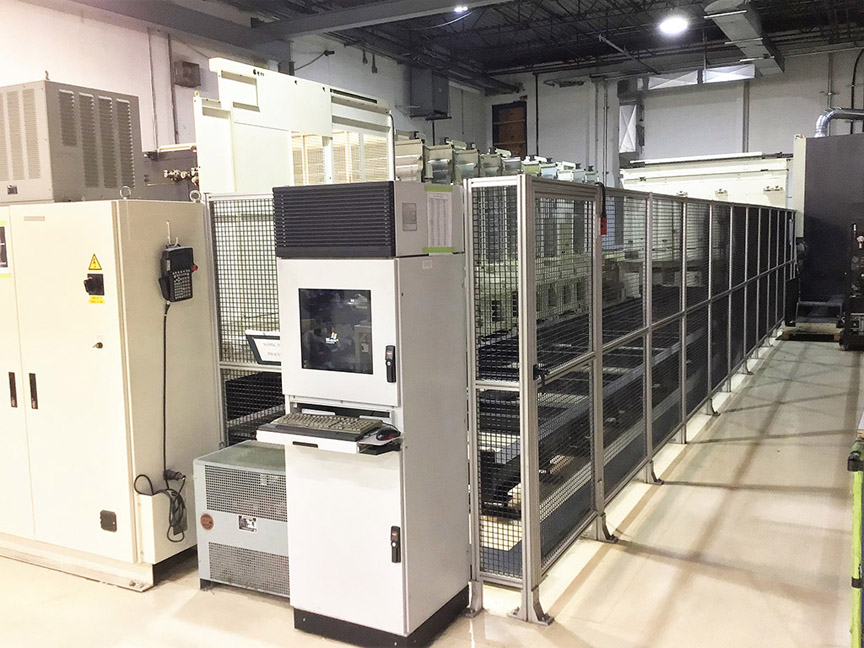

- MAKINO MAG3 10-APC 5-Axis CNC Horizontal Machining Center / Profiler: Makino Pro-5 CNC Control, Travels: X-118.1”, Y-59.1”, Z-39.4”, A-Axis (Spindle Swivel): +/-110 Degrees, C-Axis (Spindle Rotation): 0.001 Degrees, 33,000 RPM, 107 HP, HSK-F80 Taper, Through Spindle Coolant, Chip Conveyor, MAKINO MMC2 10-Station Pallet System, (10) 118.1” x 59.1” Pallets, New 2009 VIEW

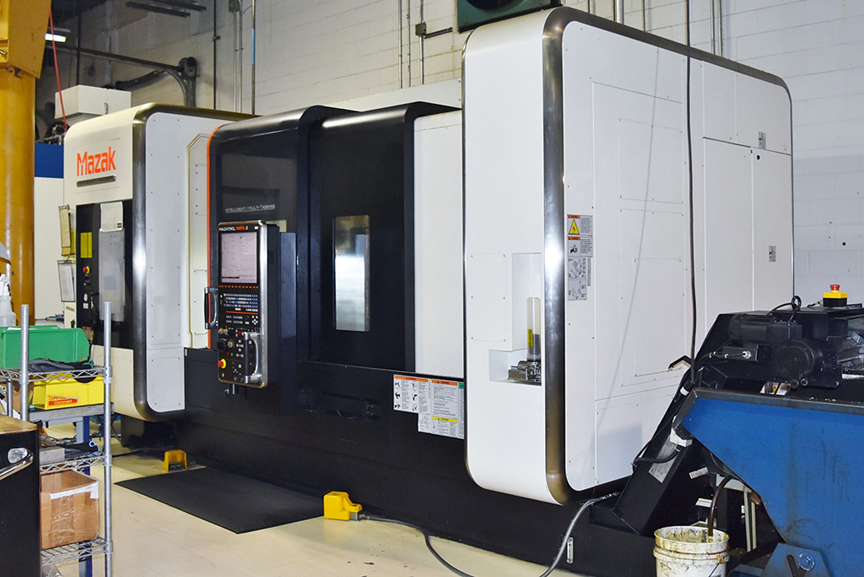

- MAZAK INTEGREX i400ST CNC Multi-Axis CNC Turning & Milling Center, Mazatrol Matrix-2 CNC Control, 26.91” Swing, 69.9” Max. Machining Length, B-Axis Milling Spindle, 12” Chuck/Main Spindle, 10” Chuck/Sub-Spindle, 9-Position Lower Turret, 36 ATC, Mazak Super-Flow Through Spindle Coolant Unit, Chip Conveyor

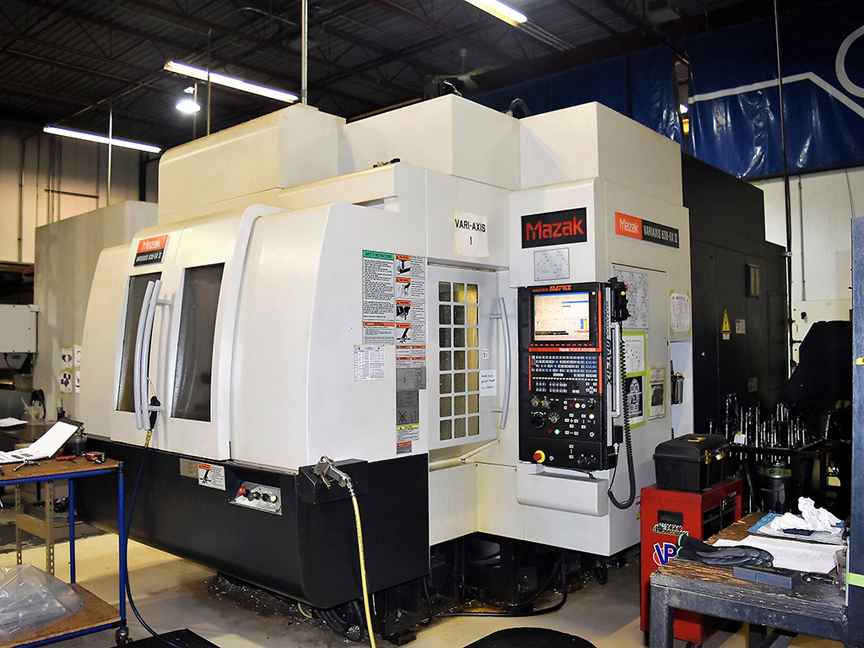

- MAZAK Variaxis 630-5X 5-Axis Vertical Machining Center: Mazatrol Matrix CNC Control, Travels: X-24.8”, Y-30.1”, Z-23.6”, (2) 19.7” x 19.7” Pallets, A-Axis Table Tilt: +120/ -130 Deg., C-Axis Table Rotation: 0.001 Degrees, 12,000 RPM, 120 ATC, 35 HP, CAT 40 Taper, Mazak Superflow T8-1000 Through Spindle Coolant, Chip Conveyor, New 2007 VIEW

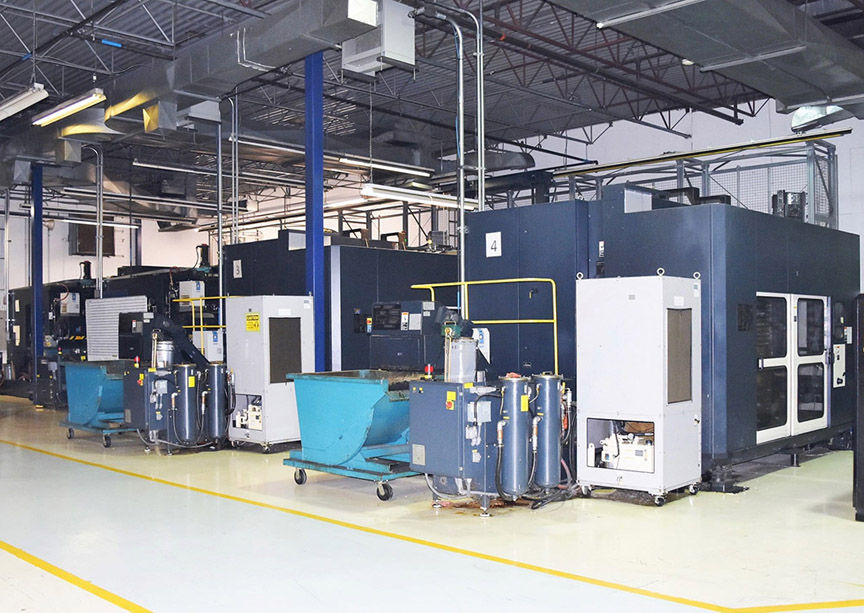

- MAKINO A88E/A81 4-AXIS FLEXIBLE MACHINING CELL, INCLUDING:(2) MAKINO A-88E 4-Axis Twin Pallet Horizontal Machining Centers, Each with Makino Pro-3 CNC Control, Travels: X-35.4”, Y-31.5”, Z-40.2”, 24.8” x 24.8” Pallets, 0.001 Deg. Pallet Rotation, 12,000 RPM, 132 ATC, 50 HP, CAT 50 Taper, Chip Blaster Through Spindle Coolant, Chip Conveyor, New 2007; (2) MAKINO A-81 4-Axis Twin Pallet Horizontal Machining Centers, Each with Makino Pro-5 CNC, X-35.4”, Y-31.5”, Z-40.2”, (2) 24.8” x 24.8” Pallets, 0.001 Deg. Pallet Rotation, 132 ATC & 60 ATC, 10,000 RPM, 50 HP, CAT 50 Taper, Chip Blaster Through Spindle Coolant, Chip Conveyor, New 2007 & 2006; (1) MAKINO MMC2 20-Station Pallet Handling System with (2) Setup/Loading Stations VIEW
- CINCINNATI MILACRON V5-3000 5-Axis CNC Horizontal Machining Center / Aerospace Profiler, Travels: X-120”, Y-30”, Z-35”, 2-Axis +/-40 Degree A/B Axis Swivel/Tilt Head, 130” x 30” Table, 10-15,000 RPM Spindle Speeds, 21 ATC, 35 HP Motor, Dual Rear-Exit Chip Conveyors, Through Spindle Coolant, Siemens-Acramatic 2100 CNC Control With Color Touch Screen Monitor

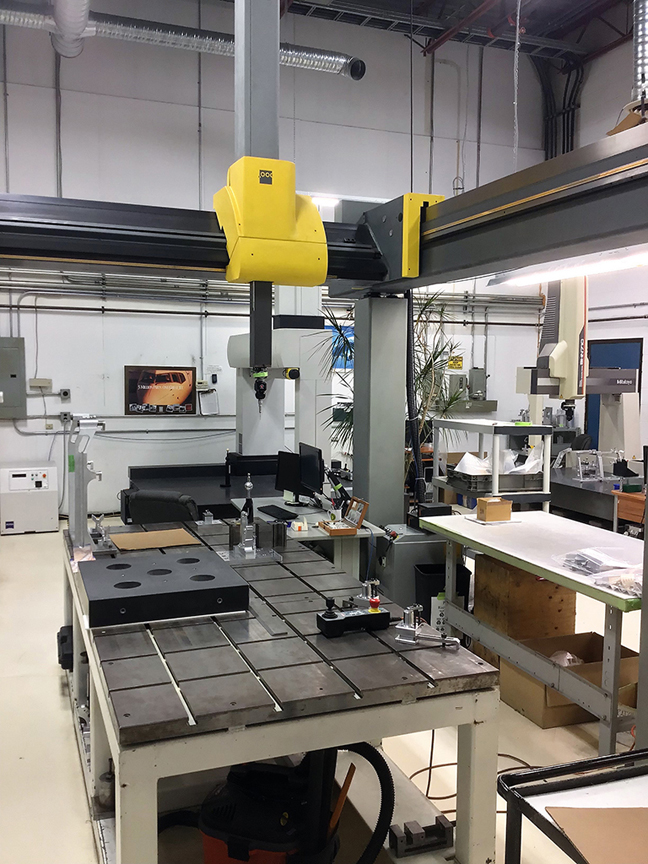

- BROWN & SHARPE DEA Alpha 20.33.15 Gantry Type CMM, Measuring Range: X-78.74”, Y-129.92”, Z-59”, 113” Between Columns, 90” Under Rail, Renishaw PH10M Probe, PC-DMIS Software VIEW
