CNC TABLE TYPE HORIZONTAL BORING MILLS:

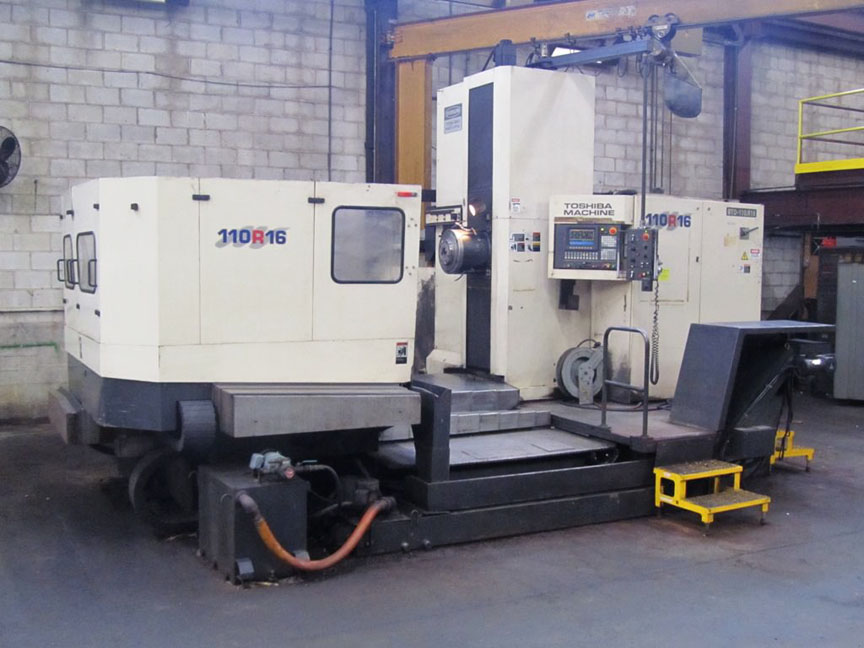

• 4.33” Toshiba BTD-110.R16, S/N 144101, 38-ATC, X-78.74”, Y-59.05”, Z-19.68”, W-57.08”, 55” x 63” B-Axis Rotary Table, 5-3000 rpm, Thru Spindle Coolant, Chip Conveyor, 40 HP, Tosnuc 888 CNC VIEW VIDEO
• 4.33” Toshiba BTD-110.R16, S/N 144274, 38-ATC, X-78.74”, Y-70.86”, Z-19.68”, W-57.08”, 55” x 63” B-Axis Rotary Table, 5-3000 rpm, Thru Spindle Coolant, Chip Conveyor, 40 HP, Tosnuc 888 CNC VIEW VIDEO

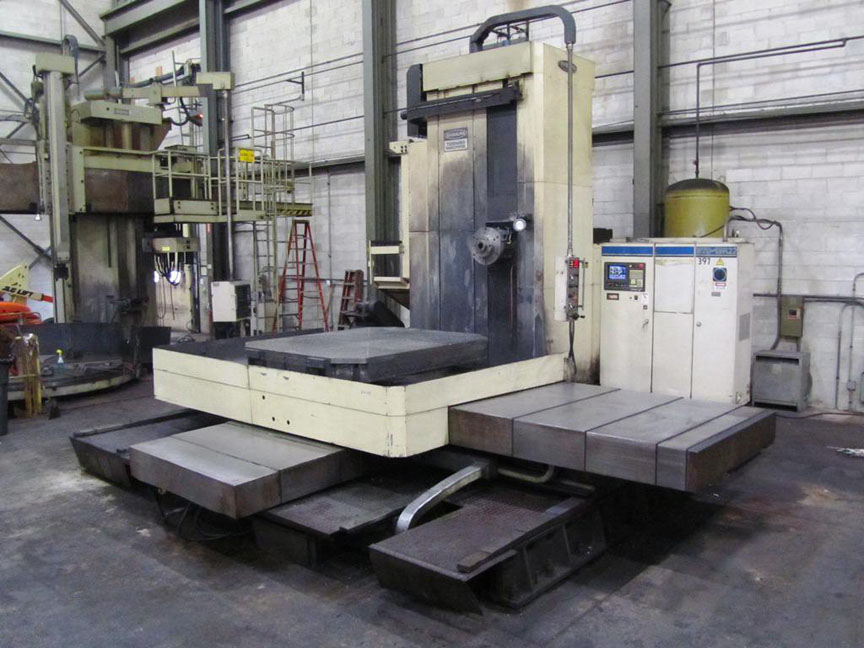

• 5.12” Toshiba BTD-13R22, S/N 143539, 60-ATC, X-118.11”, Y-90.55, Z-27.55”, W-62.99”, 71” x 87” B-Axis Rotary Table, 5-2500 rpm, Thru Spindle Coolant, Chip Conveyor, 30 HP, Tosnuc 777-2 CNC VIEW VIDEO

CNC VERTICAL BORING MILLS:

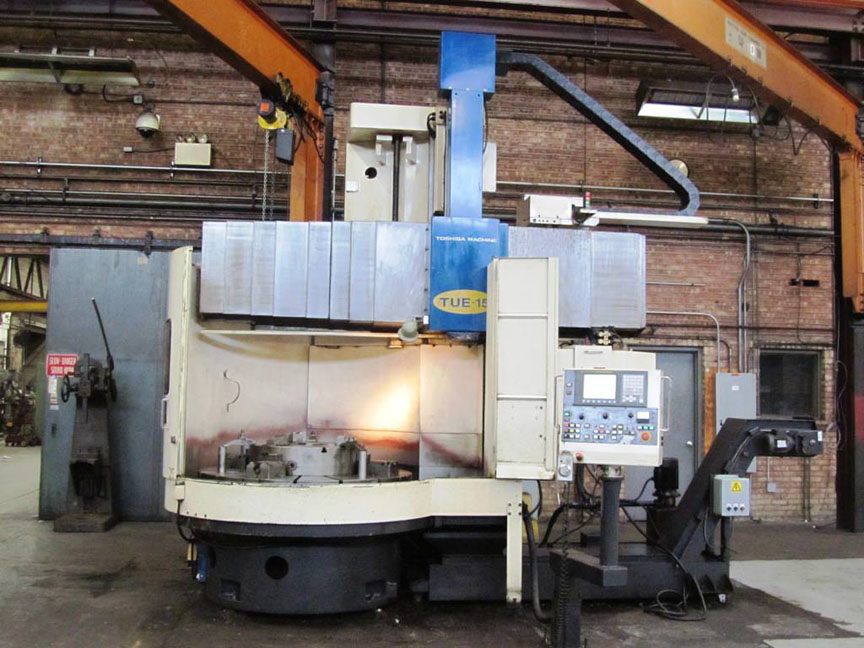

• Toshiba TUE-15, S/N 440348, 12-ATC, 59.05” Table w/4-Chuck Jaws, 70.86” Turning Diameter, 59.05” Turning Height, 35.43” Vertical Ram Travel, Table Speeds 2-250 rpm, Table Capacity 17,600 Lbs., Coolant, Chip Conveyor, Fanuc 0i-TC CNC [2008] VIEW VIDEO
• Toshiba TMD-13, S/N 420149, 24-ATC, 49.18” Table w/4-Chuck Jaws, 62.99” Swing, 43.30” Turning Height, 31.5” Vertical Ram Travel, Table Speeds 2-360 rpm, Table Capacity 17,600 Lbs., Milling Spindle Speeds 12.5-1500 rpm, 20 HP Live Spindle Motor, Coolant, Chip Conveyor, 40 HP Table Motor, Fanuc 15-T CNC [Ram Completely Rebuilt in 2018 – Machine Not Put Back Into Service Due To Plant Closure]

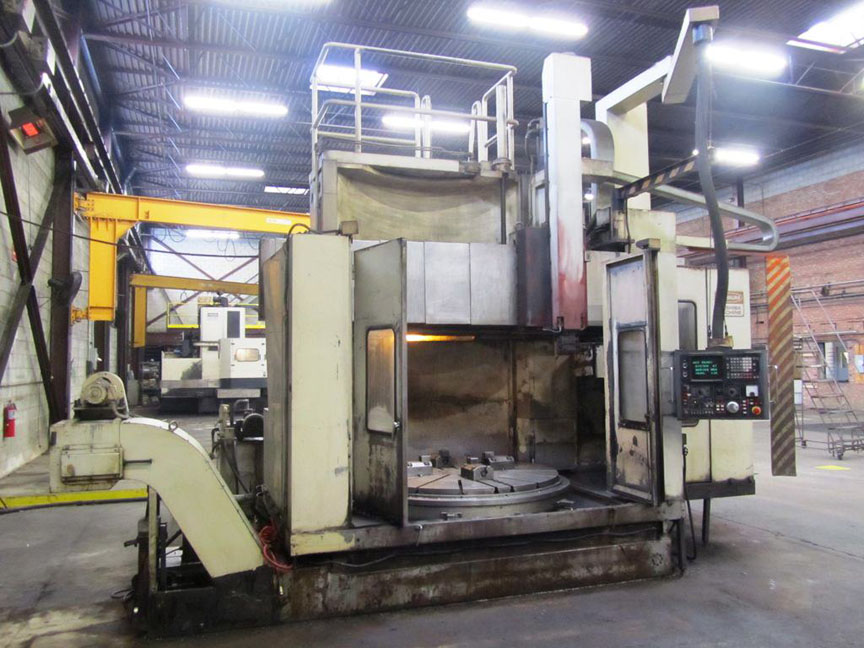

• Toshiba TXN-16, S/N 430012, 12-ATC, 62.99” Table w/4-Chuck Jaws, 78.74” Turning Diameter, 62.99” Turning Height, 74.80” Height Under Ram, 35.4” Vertical Ram Travel, Table Speeds 3.2-315 rpm, Table Capacity 15,400 Lbs., Chip Conveyor, 60 HP, Fanuc 6-T CNC VIEW VIDEO

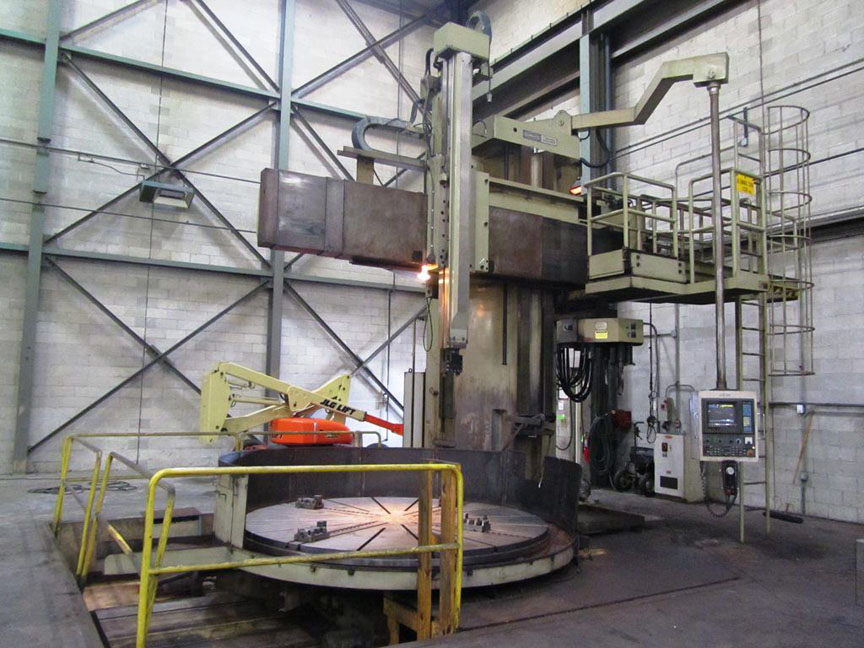

• Toshiba TSS 30/55B, S/N 310387, Openside, 12-ATC, 118.11” Table w/4-Chuck Jaws, 216.53” Swing, 157.48” Turning Diameter to Center, 59.05” Vertical Ram Travel, 78.74” Vertical Travel of Cross Rail, 102.36” Turning Height, Table Speeds 2.5-100 rpm, Table Capacity 44,000 Lbs., 50 HP, Fanuc 15-T CNC [Ram Completely Rebuilt in 2016] VIEW VIDEO

CNC TURNING CENTERS:

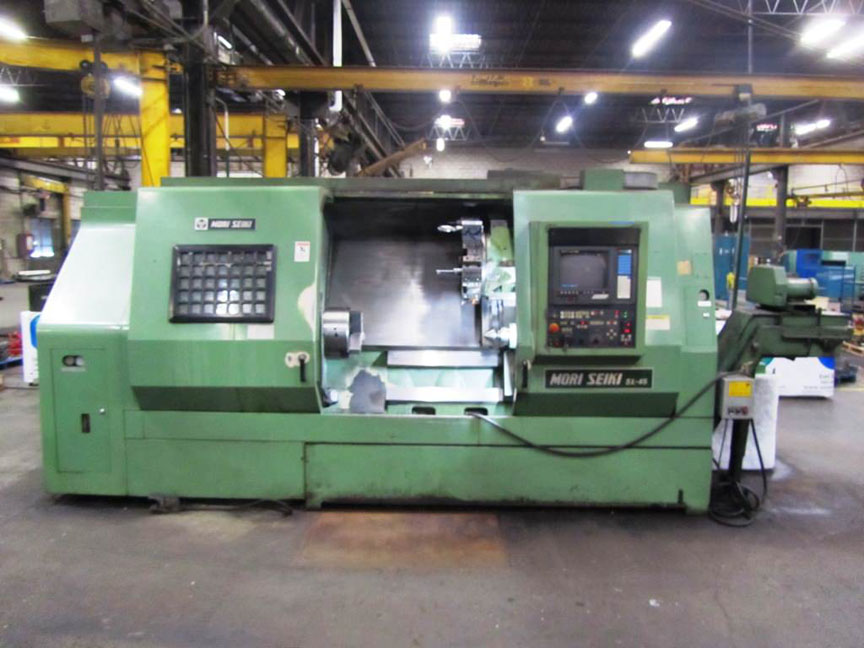

• Mori Seiki SL-45B/1000 with 15” 3-Jaw Chuck, 26.4” Swing Over Bed, 46.5” Distance Between Centers, 3-1500 RPM, 12-Station Turret, Hydraulic Tailstock, Tool Arm, Chip Conveyor, 40 HP, Moric TF5 (Fanuc 15-T) CNC, S/N 169 VIEW VIDEO
• Mori Seiki SL-45B/1000 with 15” 3-Jaw Chuck, 26.4” Swing Over Bed, 46.5” Distance Between Centers, 3-1500 RPM, 12-Station Turret, Hydraulic Tailstock, Tool Arm, Chip Conveyor, 40 HP, Moric TF5 (Fanuc 15-T) CNC, S/N 185

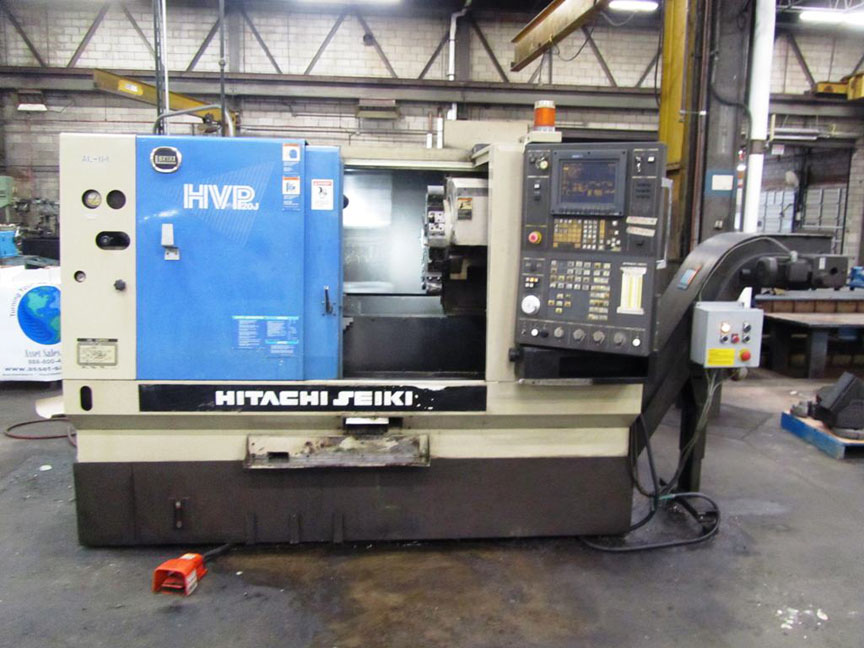

• Hitachi Seiki HVP-20J CNC Chucker Lathe, Mdl. LHVP-20-J, 8” 3-Jaw Chuck, 18.1” Swing Over Bed, 15” Max. Turning Length, 30-5000 RPM, 12-Station Turret, Seicos J CNC, Chip Conveyor, SN HTJ3736HL VIEW VIDEO

CNC HORIZONTAL MACHINING CENTER:

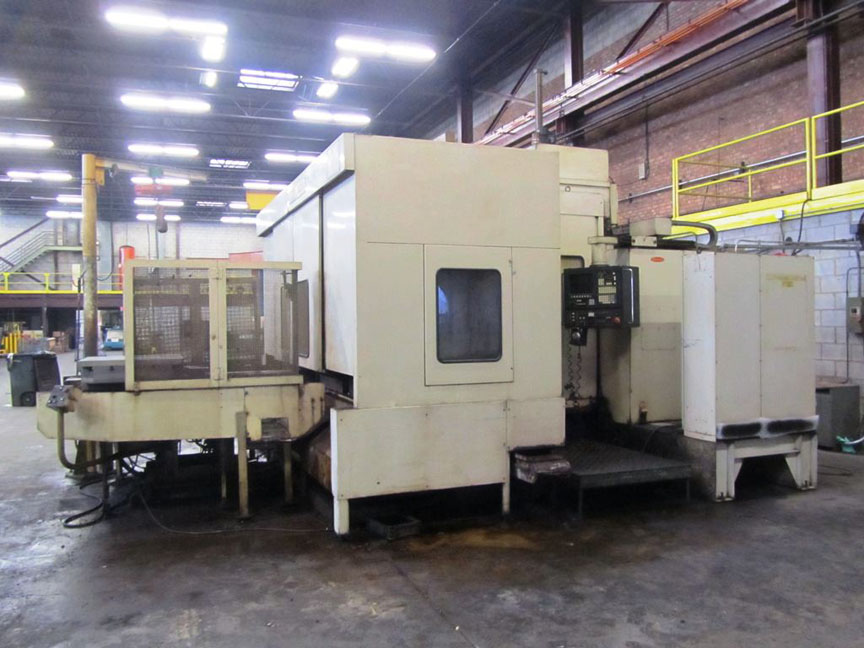

• Toshiba BMC-80 with (2) 31.5” x 31.5” Pallets, 45-ATC, CAT 50 Taper, X-63.0”, Y-44.0”, Z-39.4”, Flood Coolant, 20 HP, 20- 4,500 RPM, .001 Degree Pallet Indexing (B-Axis), Chip Conveyor, 30 HP, Tosnuc 600 CNC, S/N 211691 VIEW VIDEO

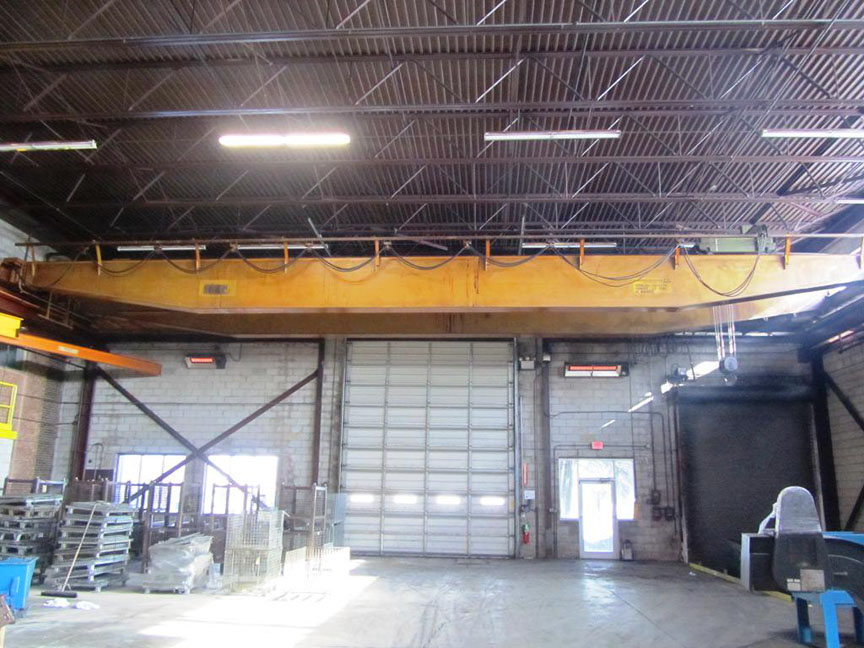

OVERHEAD BRIDGE CRANES:

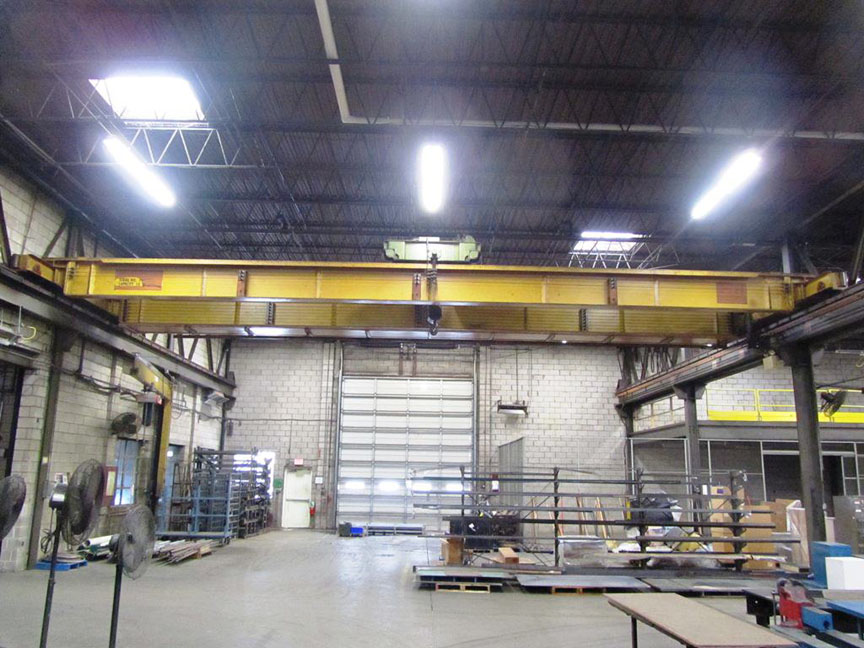

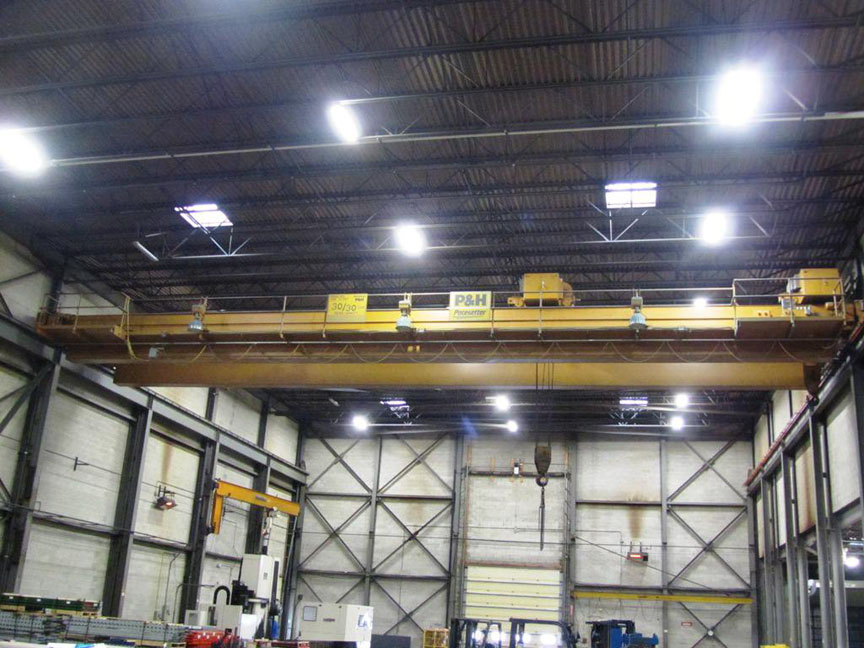

• 30/30 Ton x 75’ Span P & H Pacesetter Double Girder Overhead Bridge Crane, with (2) 30 Ton Hoists with 51’ Lift on (2) Trollies 8’ Spread, Radio Control, Smart Torque 3 Speed Motors, 460 Volt Electrics, S/N CPE30387
• 15 Ton x 68’4” Span P & H Double Girder Overhead Bridge Crane, 22’ Lift, Pendant Control, (5) Step Variable Speed Motors, 460 Volt, S/N C(H) 26039 (60# Crane Railway & Buss Duct Sold Separately)
• 10 Ton x 47’3” Span P & H Double Girder Overhead Bridge Crane, 18’ 2” lift, Pendant Control, (5) Step Variable Speed Motors, 460 Volt, S/N CH24066, (60# Crane Railway & Buss Duct Sold Separately)

ADDITIONAL MACHINES & EQUIPMENT:

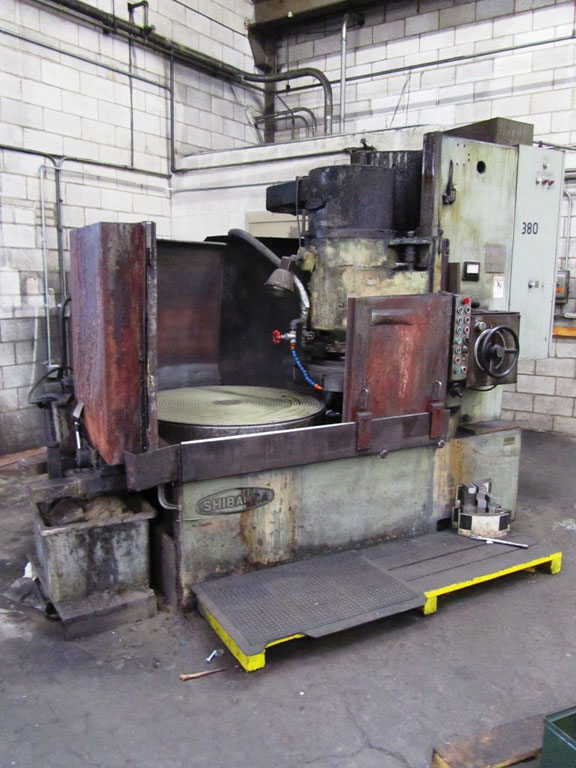

• 42” Shibaura Rotary Surface Grinder, Model KRTC-11A, Coolant, Segmented Grinding Wheel, 50 HP, S/N 531

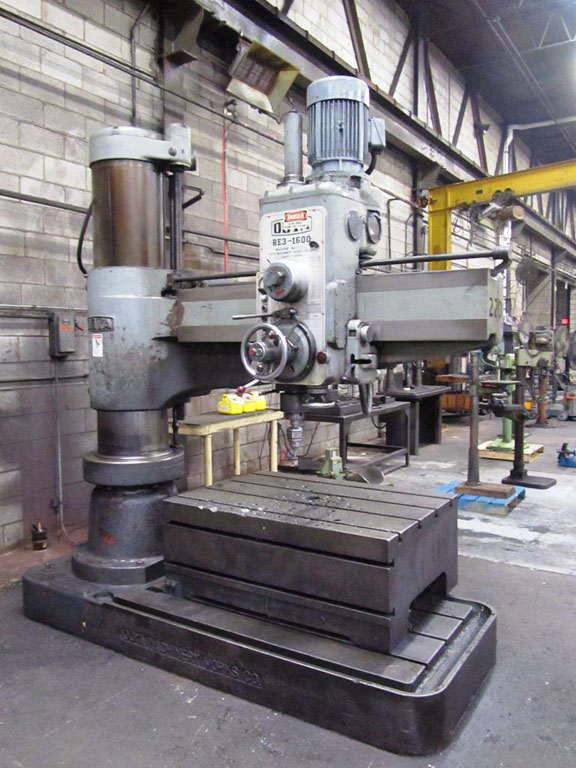

• Ooya 5’ Arm 16” Column Radial Arm Drill, Model 3-1600, S/N 756 364

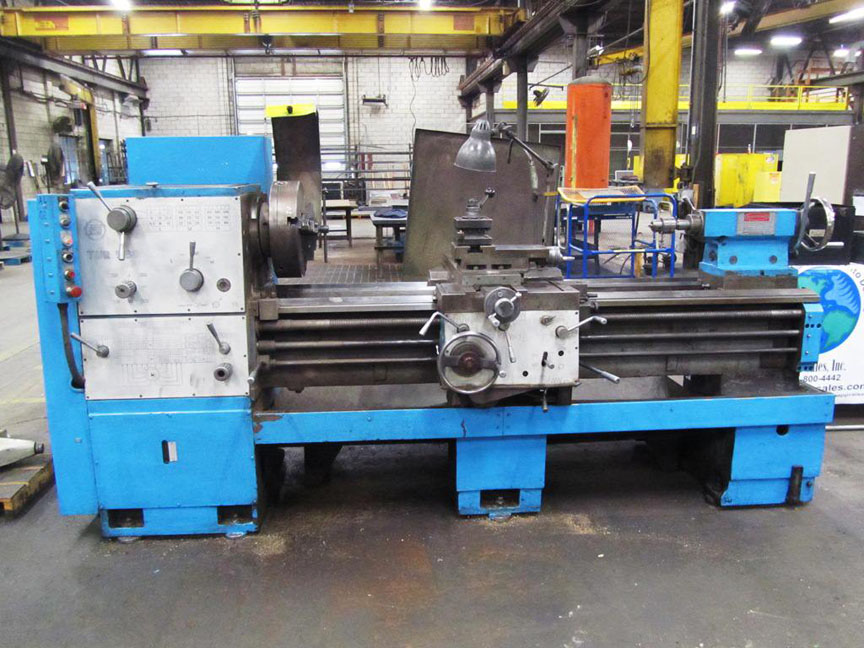

• Toolmex 22” x 60” Model TUR-560 Manual Lathe, Taper Attachment, 15” 3-Jaw, Tailstock, S/N 48925

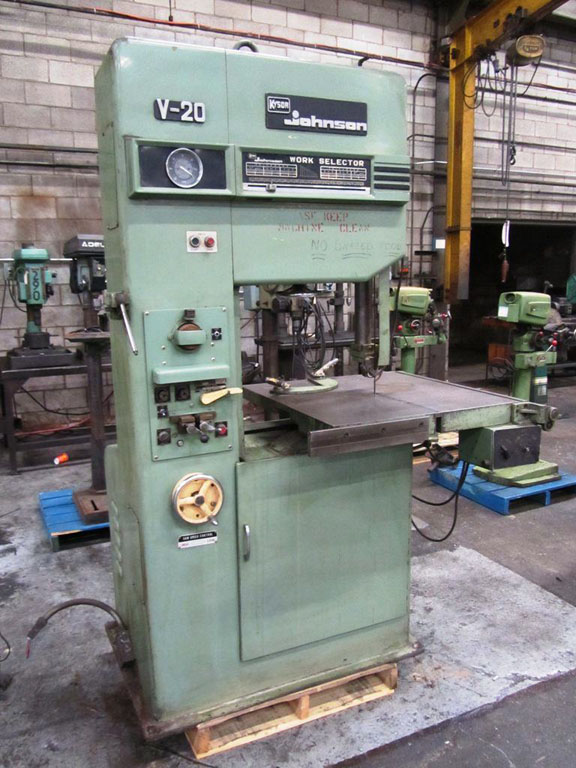

• Kysor-Johnson Vertical Band Saw

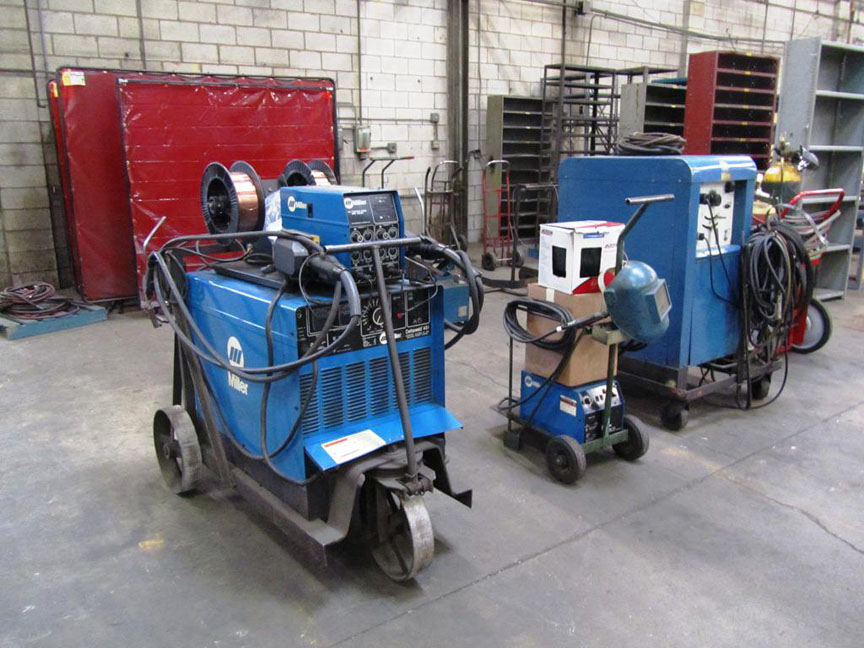

• Miller Deltaweld 451 Welder w/Wirefeed
• Miller Maxstar 175 Welder

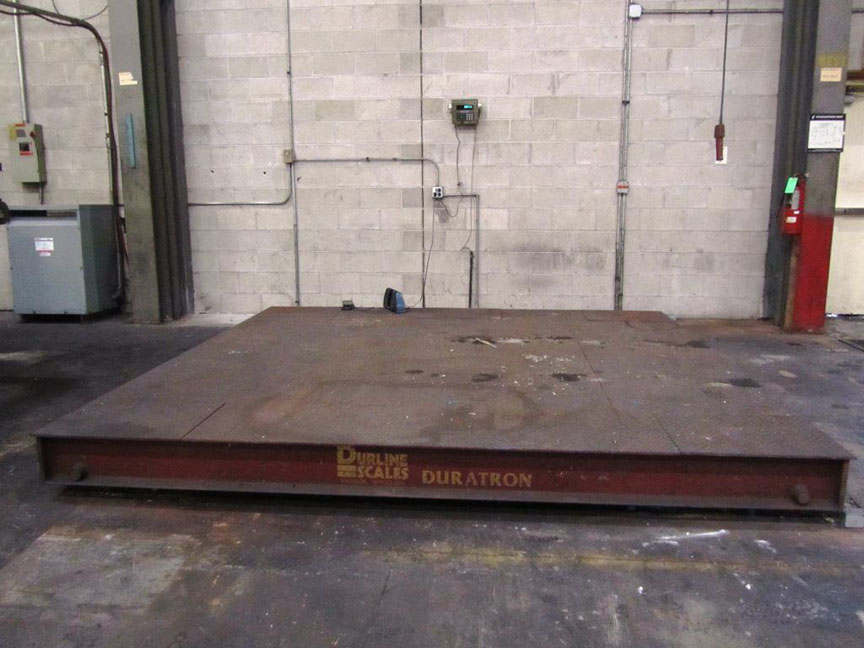

• 80,000 Lb Duraline Duration 10’ x 10’ Platform Scale with Digital Readout
• 20,000 Lb B-TEX Platform Scale with Digital Readout
• Vestil Shrink Wrap System with Digital Readout

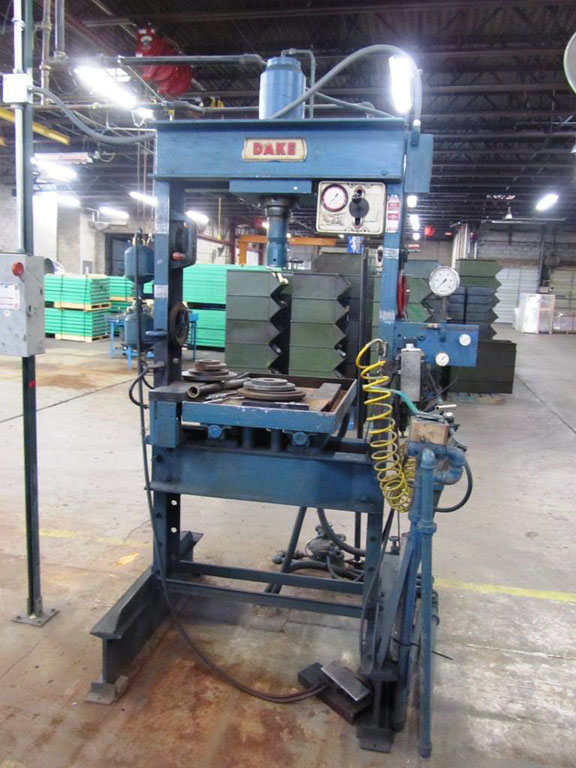

• Dake Model 8-050 75 Ton H-Frame Press with Sliding Table, S/N 166064
• Yoshida Model YUD-540 Drill Press

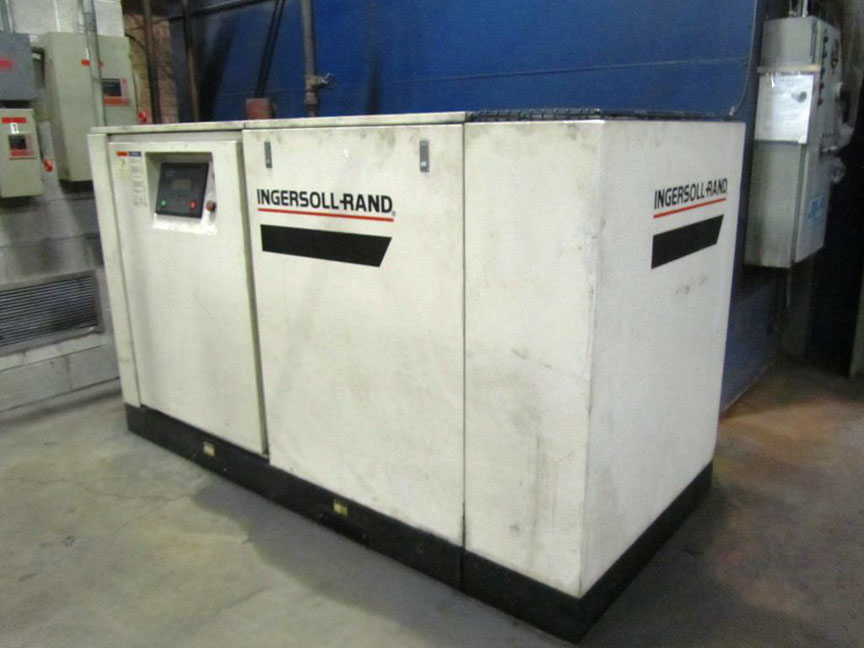

• Ingersoll Rand Intellisys Air Compressor, Model SSREP60, S/N F17923U97133, 60 HP
• Ingersoll Rand BXR300-GTE5 Air Dryer, S/N 97FDXR2866
• Hotsy Pressure Washer
• (2) Arbor Presses

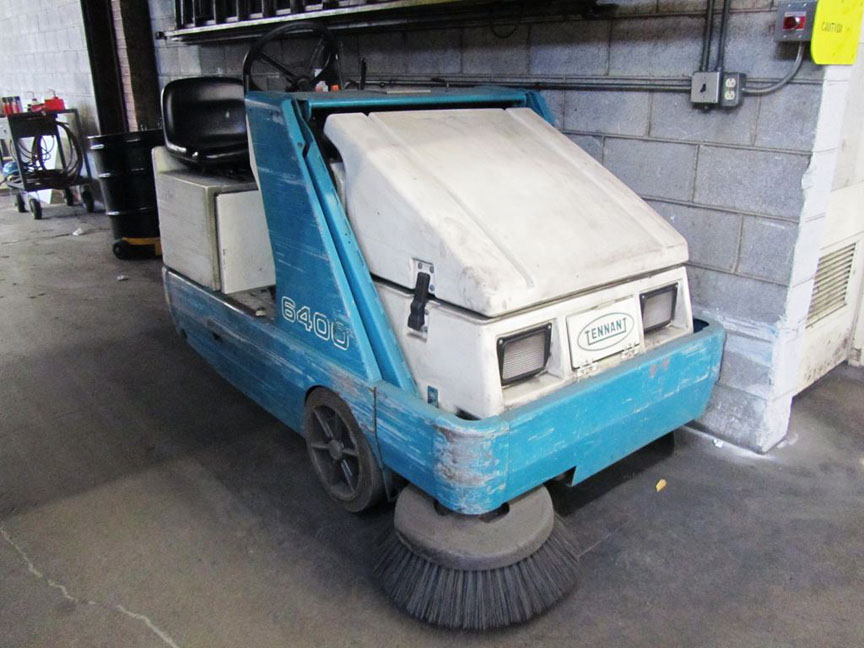

• Tennant Model 6400 Floor Sweeper, SN 64-3415
• Speed Packer Insight Foam Bag Packaging System

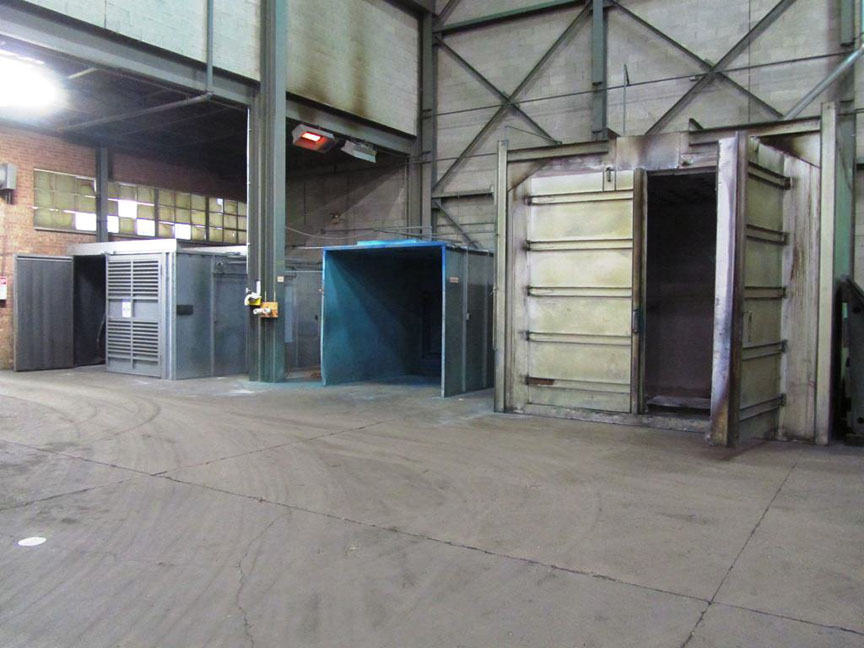

• JBI Paint Spray Booth System 18’ x 15’ x 15’, Safety Kleen Paint Mixer

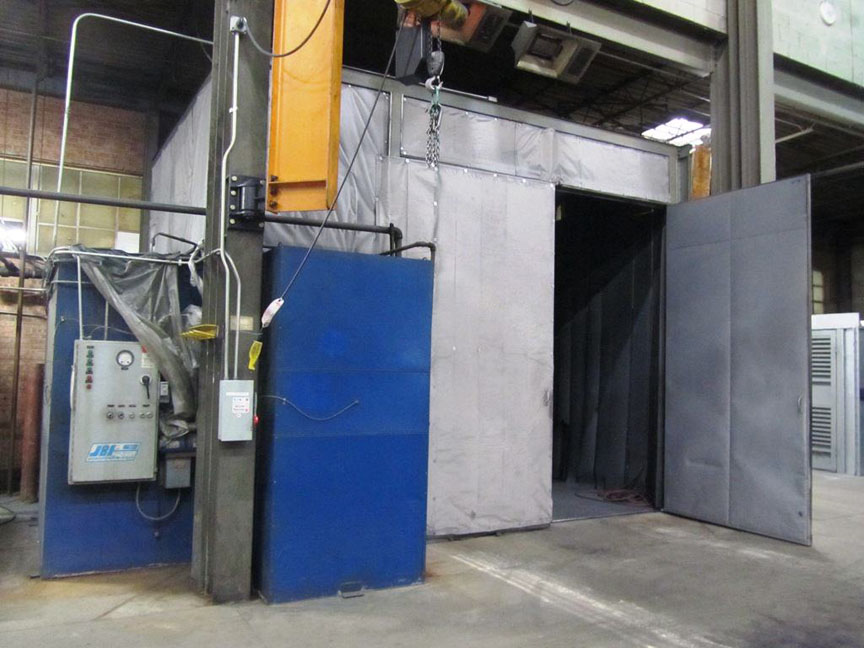

• JBI Powder Coat Powder Coat Booth with Filters 9’ x 10’ x 8’
• JBI Blast Room, 14’ x 17’ x 12’
• Global Finishing Solution Blast Booth 12’ x 12’ x 8’
• OSI Natural Gas Oven, 14’ x 15’ x 12’, 800,000 BTU, S/N 6190
• Steelman Convection Oven Model 222EB, S/N 050110 500 Degree

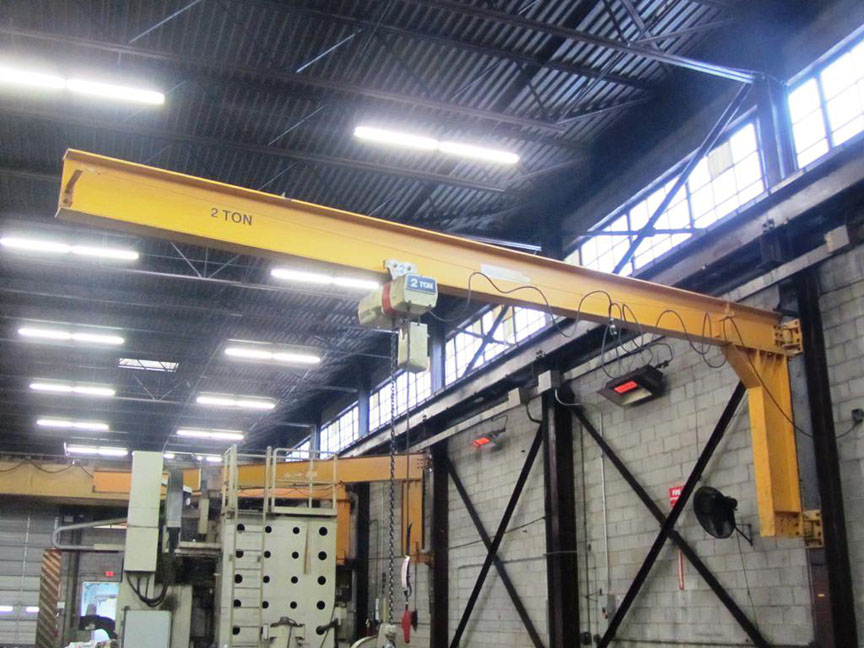

• (25) Assorted Jib Cranes up to 5 Ton Capacity
• Wright Monorail Crane System with 750 lb and 1000 Lb Hoists
• Clark Electric Fork Lift
• Oil Distribution System
• Delta Table Saw

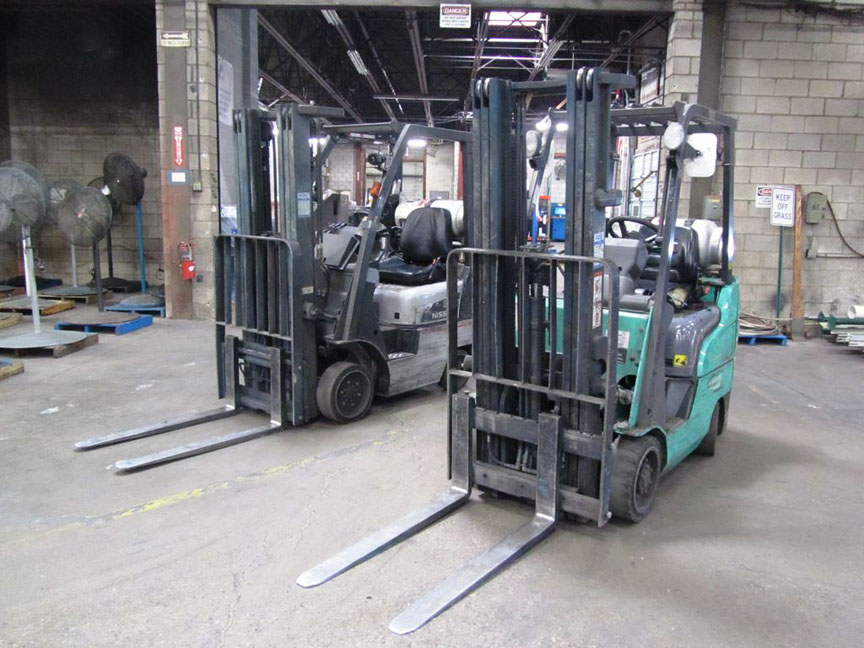

• Mitsubishi Model FGC15NLP 2500 lb Fork Lift, SN AF81F2033
• Nissan Model 30 2500 Lb Fork Lift, Side Shift

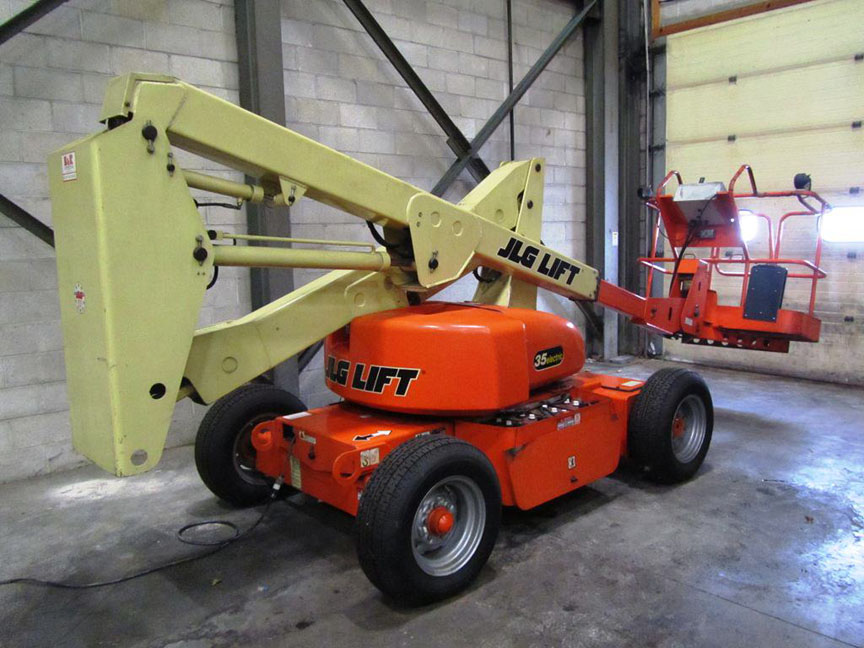

• JLG Man Lift Model 35, Electric, 35’ Lift Height, 500 lb Capacity, S/N 009208

PLANT WALK THROUGH – VIEW VIDEO
