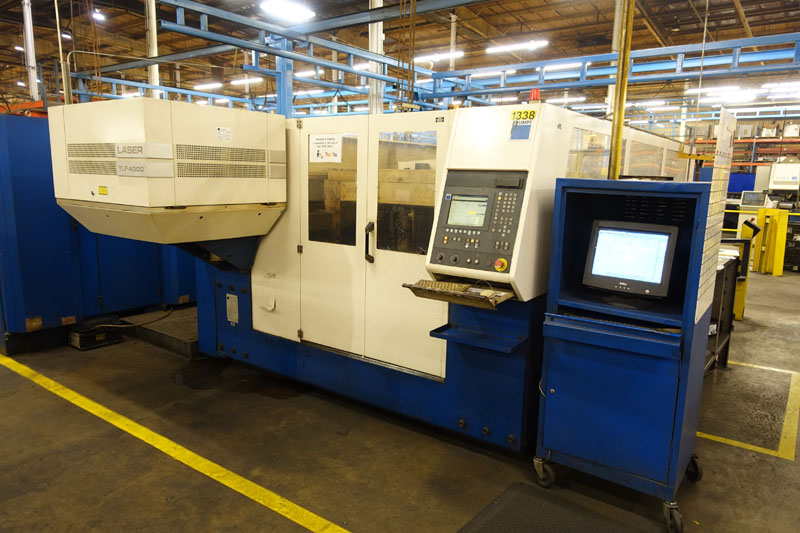

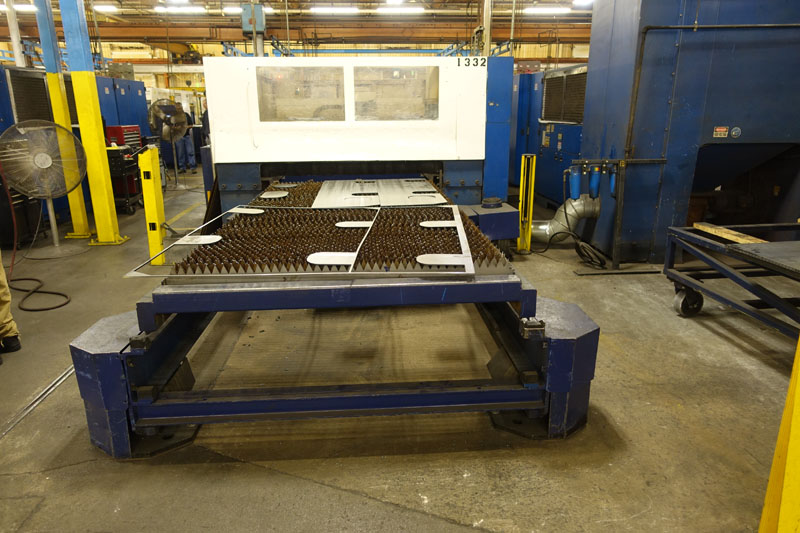

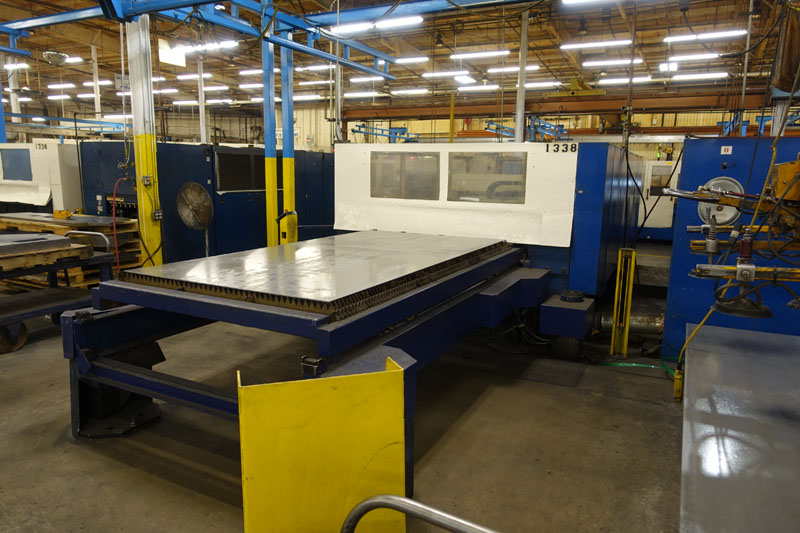

4000 WATT L3030 TRUMPF CNC FLYING OPTIC LASER
New: 2003

Laser Output …………………….. 4000 Watts
X-Axis Travel ……………………. 121″
Y-Axis Travel ……………………. 61″
Z-Axis Travel ……………………. 5″
Max. Workpiece Weight …………….. 1562 Lbs.
Maximum Material Thickness ………… .80″
Max. Positioning Speed (Simultaneous).. 3,340 IPM
Machine Weight …………………… 25,300 LBS

EQUIPPED WITH:

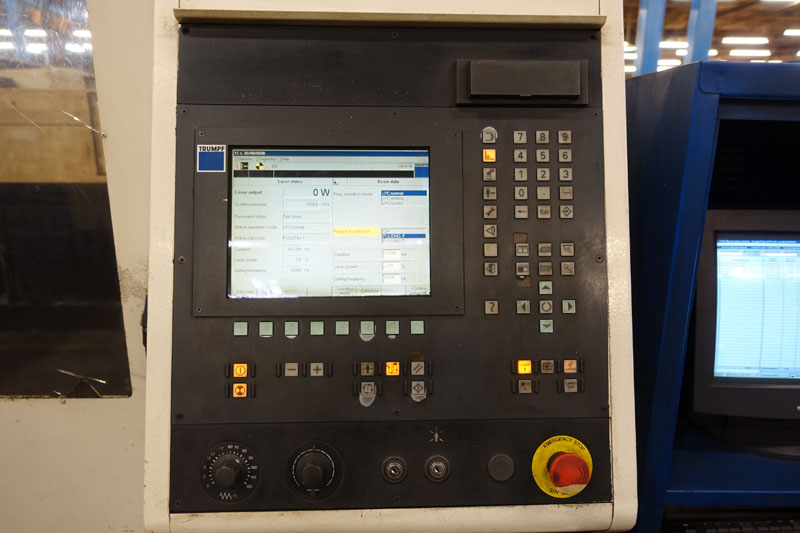

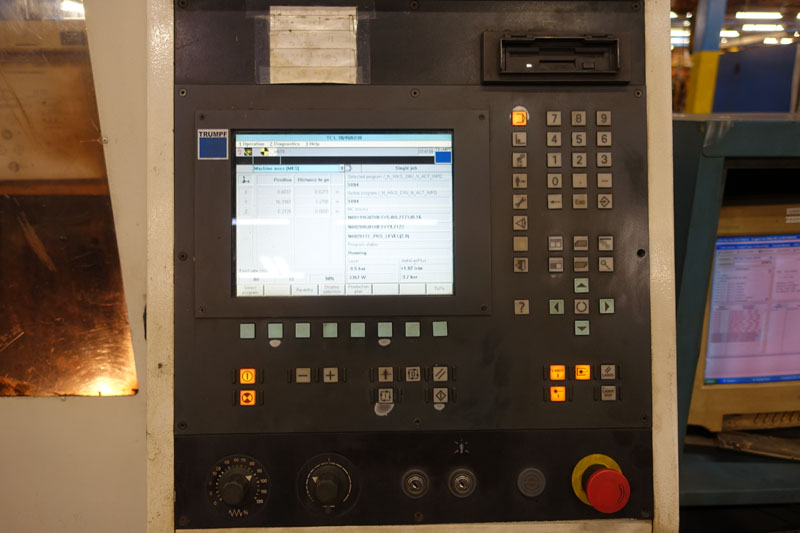

Siemens 840D CNC Control
TLF 4000 Watt Laser Resonator
Automatic Pallet Shuttle System

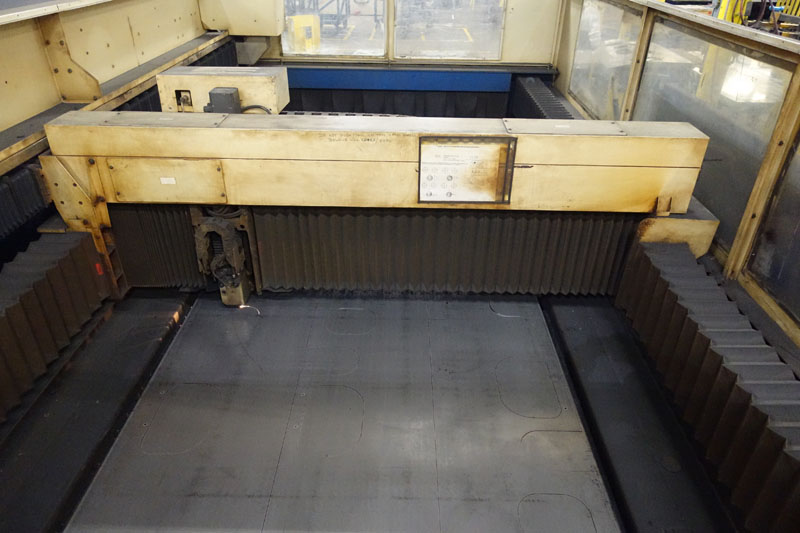

7.5″ Cutting Head
Riedel Chiller Unit
Handte Dust Collector

HOURS:
On Time: 46,955
Beam On: 24,136

NOTE:
Inspect in Plant Under Power

4000 WATT TRUMPF L3030 CNC FLYING OPTIC LASER
New: 2000

Laser Output …………………….. 4000 Watts
X-Axis Travel ……………………. 121″
Y-Axis Travel ……………………. 61″
Z-Axis Travel ……………………. 5″
Max. Workpiece Weight …………….. 1562 Lbs.
Maximum Material Thickness ………… .80″
Max. Positioning Speed (Simultaneous).. 3,340 IPM
Machine Weight …………………… 25,300 LBS

EQUIPPED WITH:
Siemens 840D CNC Control
TLF 4000 Watt Laser Resonator
Automatic Pallet Shuttle System
7.5″ Cutting Head
Riedel Chiller Unit
Dust Collector

HOURS:
On Time: 87,372
Beam On: 34,573

NOTE:
Inspect in Plant Under Power
