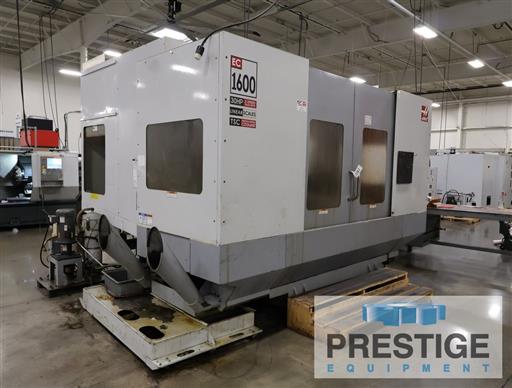

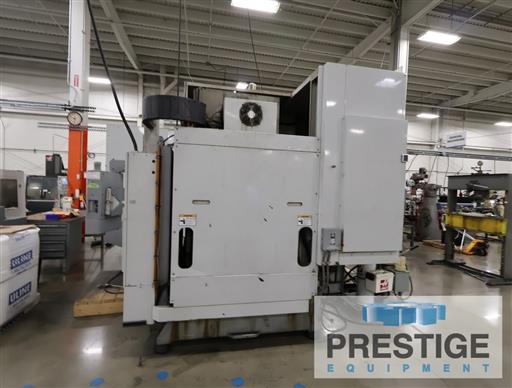

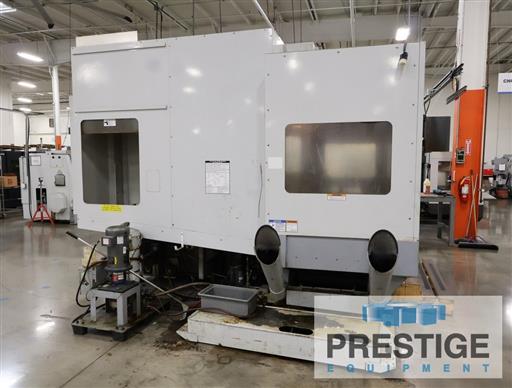

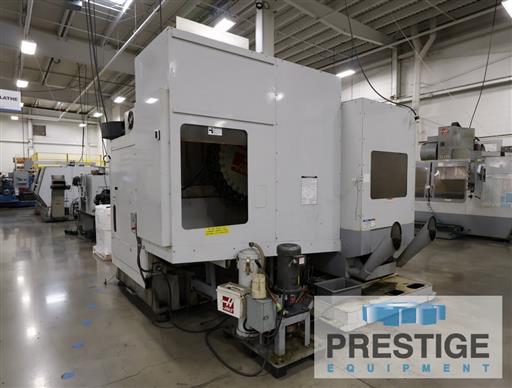

HAAS EC-1600-5X CNC Horizontal Machining Center
Model:
EC-1600 5X
Age:
2007
Ref#:
44766
Prestige Equipment is the world's leading provider of HAAS EC-1600-5X CNC Horizontal Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Horizontal Machining Centers (HMC) for sale.
Product Specifications
Features:
✓
HAAS CNC Control
✓
30" Built-In 4th-Axis Rotary Table
✓
24" 5th Axis Table
✓
30-Position ATC
✓
CAT 50 Taper
✓
30 HP Motor
✓
Thru-Spindle Coolant
✓
Dual Chip Augers
Product Specifications
CAPACITY:
X-Axis Travel
64"
Y-Axis Travel
50"
Z-Axis Travel
32"
Overall Table Size
64" x 36"
Built-In Rotary Table Diameter
30"
Maximum Part Weight on Table
10,000 LBS.

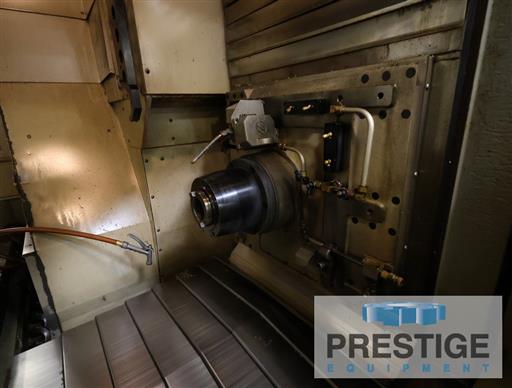

Spindle Taper
CAT 50
Spindle Speeds
7,500 RPM
Main Motor
30 HP Geared Head
Rapid Traverse, XYX
750 IPM
Auto Tool Change Capacity
30 ATC
Maximum Tool Dia., Adj. Full/Empty
4" / 10"
Maximum Tool Length
20"
Maximum Tool Weight
30 Lbs.
Approx Dimensions, Domestic Pallet
192" x 144" x 136"
Approx Machine Weight
35,000 lbs.
Equipped With:

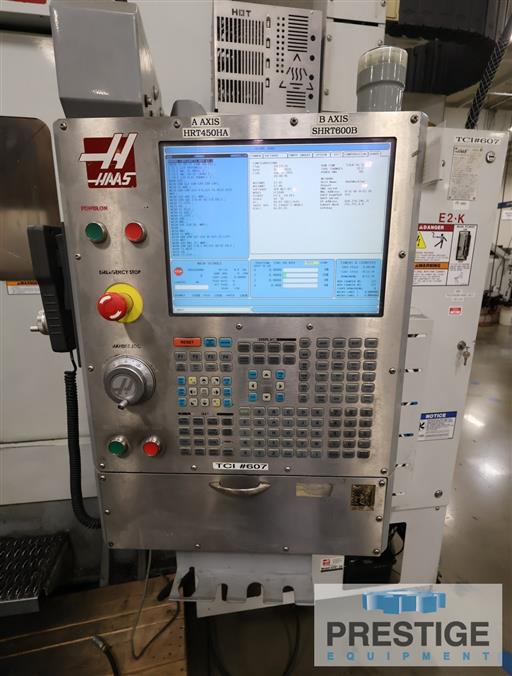

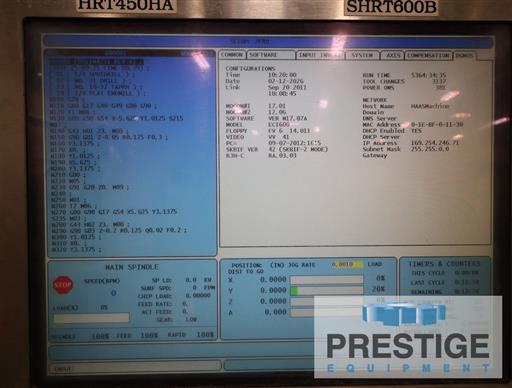

Haas CNC Control
- 5th Axis Pre-Wired
- Remote Jog Handle
- Quick Code Programming
- Intuitive Programming
- High Speed Machining
- Advanced Tool Management

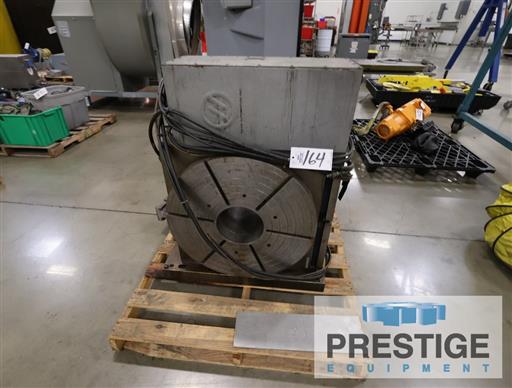

Built-In 4th-Axis Rotary Table

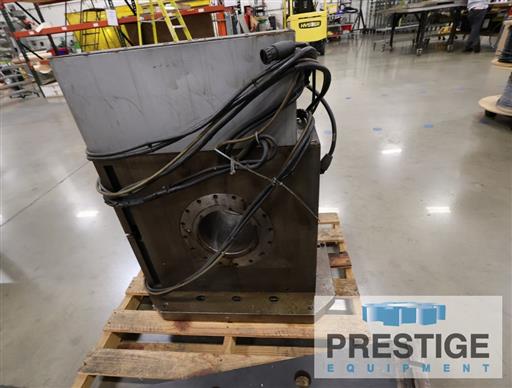

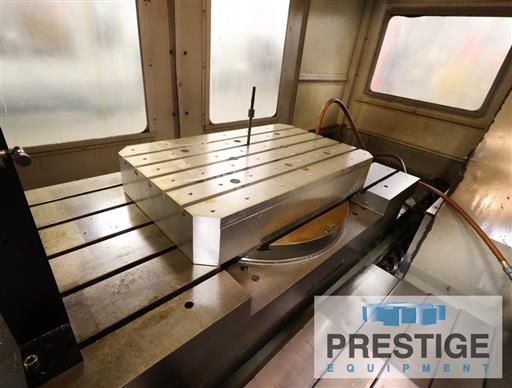

24" 5th-Axis Table

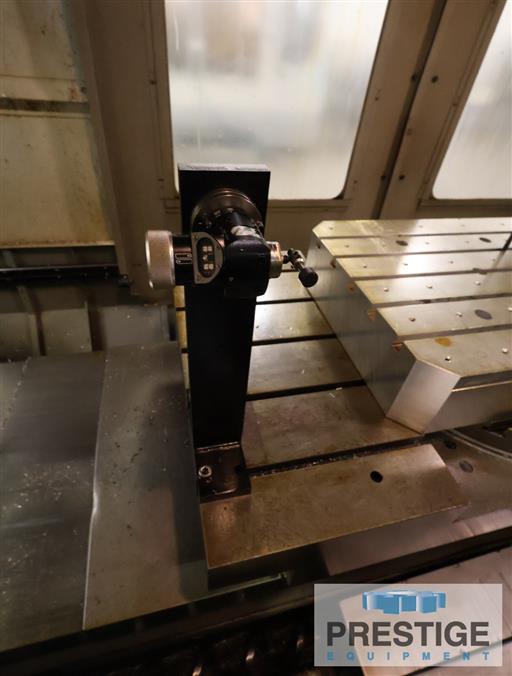

Renishaw Wireless Probing

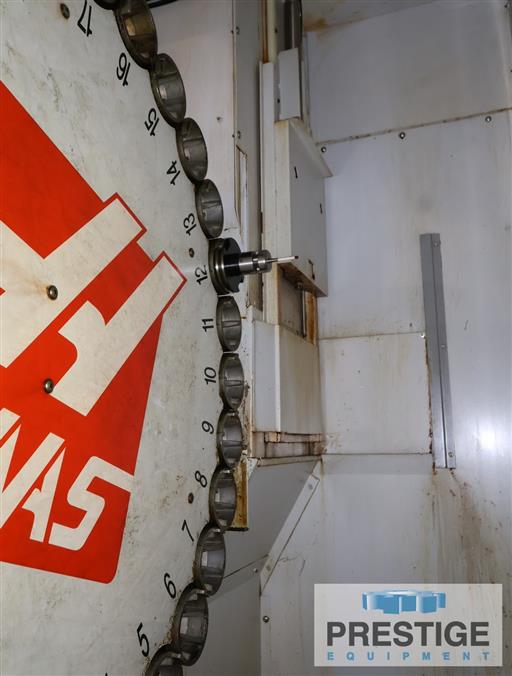

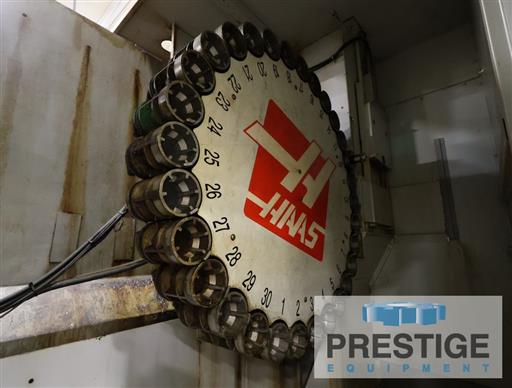

30-Station Automatic Tool Changer
Rigid Tapping
Rev Spindle Encoder
Rotation & Scaling
Remote Tool Release
Vector Drive
30 HP Motor
Linear Scales
Thru-Spindle Coolant
Dual Chip Augers
LOCATION:
East Coast Manufacturing Facility
Features:
✓
HAAS CNC Control
✓
30" Built-In 4th-Axis Rotary Table
✓
24" 5th Axis Table
✓
30-Position ATC
✓
CAT 50 Taper
✓
30 HP Motor
✓
Thru-Spindle Coolant
✓
Dual Chip Augers
