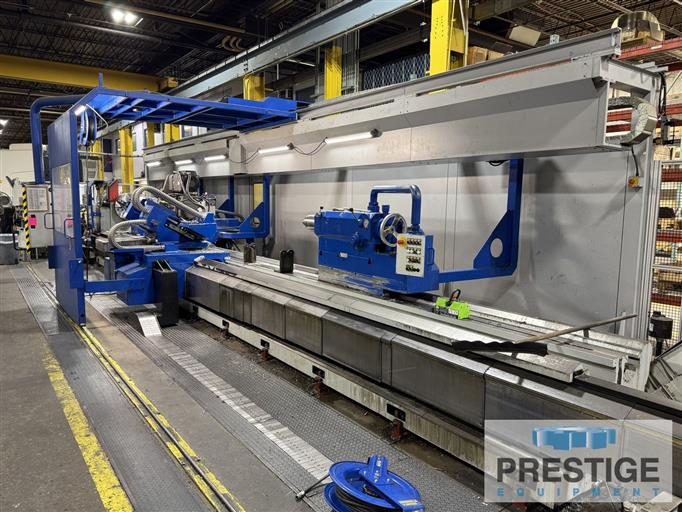

Tacchi HD/3 600 x 1000 48" x 393" CNC Lathe w/ Milling & Y-Axis
Model:

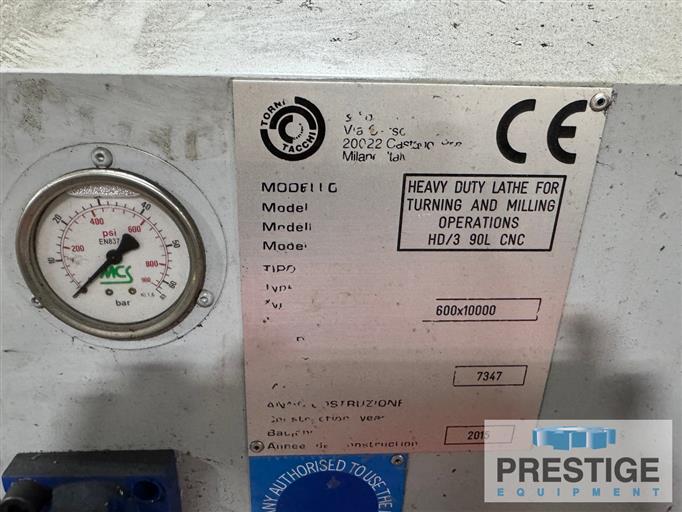

HD/600 x 10M Series 90 L CNC
Age:
2015
Ref#:
44488
Prestige Equipment is the world's leading provider of Tacchi HD/3 600 x 1000 48" x 393" CNC Lathe w/ Milling & Y-Axis & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓
Siemens 840 DE Solution Line CNC Control
✓
12-Station Heavy Duty Disc Type Turret w/Live Spindle
✓

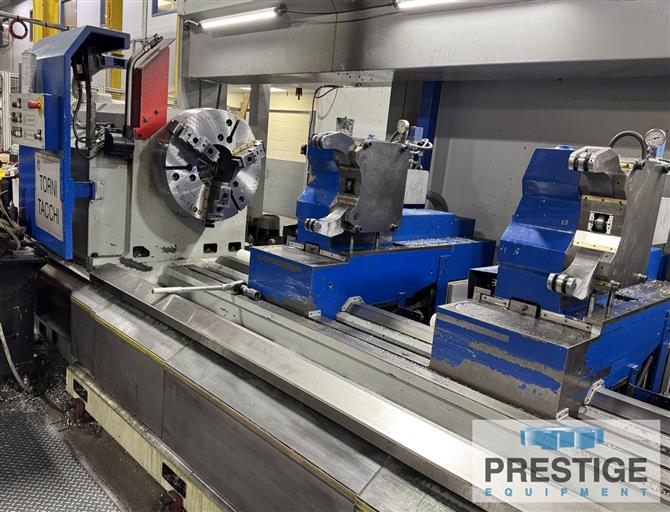

Self Centering CNC & Manual Steady Rests
✓
Heidenhain Scales
✓
Live Milling w/ C & Y Axis
✓
3-Way Bed
Product Specifications
SPECIFICATIONS:
Maximum Swing Over Bedways
47.24"
Maximum Swing Over Saddle
29.52"
Distance Between Centers
393.70"
Weight Between Centers, Unsupported
19,800 Lbs
HEADSTOCK:

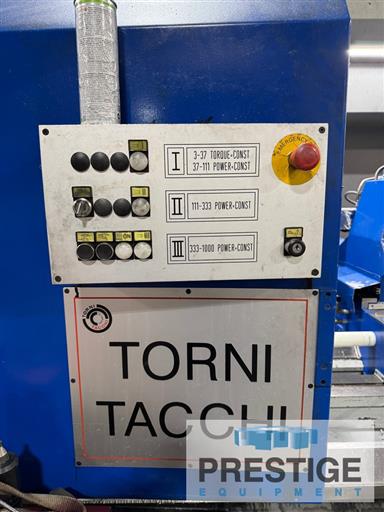

Speed Range, Standard
3 to 1,000 RPM
Speed Range with Constant Power
37 to 1,000 RPM
Number of Speed Ranges
3
Maximum Torque on Spindle Axis
9,000 Nm
Main Drive Motor
67 HP
Spindle Nose, DIN 55026
11"
Spindle Hole Diameter
4.13"
FEEDS & RAPID TRAVERSE:
X & Z Axes, Infinitely Variable
0 to 236.22 IPM
X & Z Axes, Rapid Traverse
236.22 IPM
MILLING:
Live Spindle Speeds
To 3000 RPM
Live Spindle Motor
20 HP

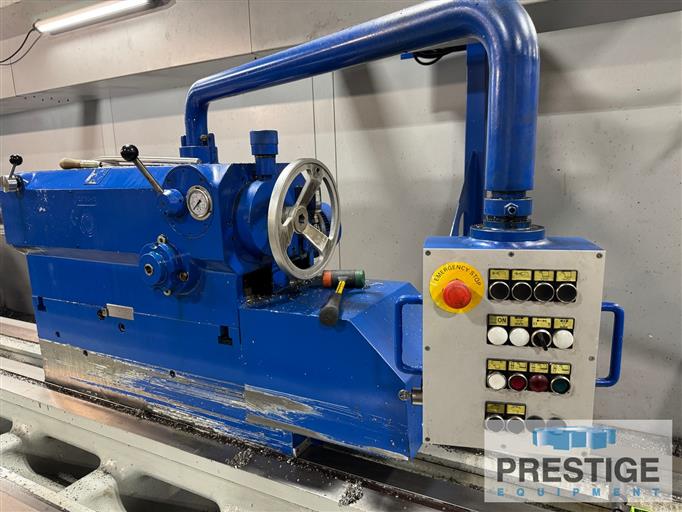

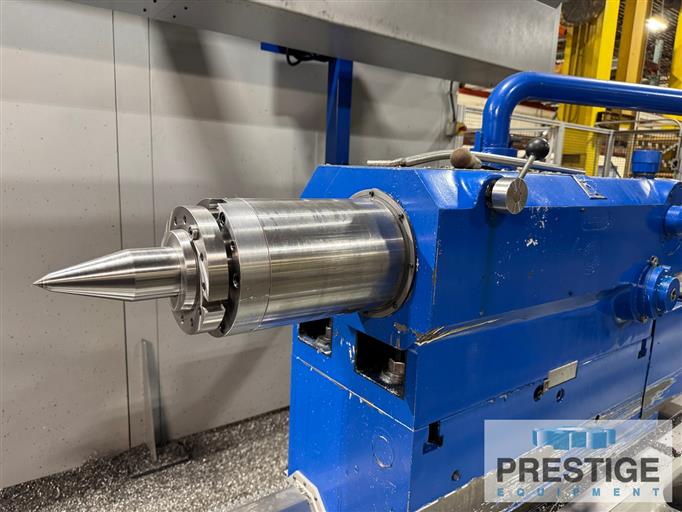

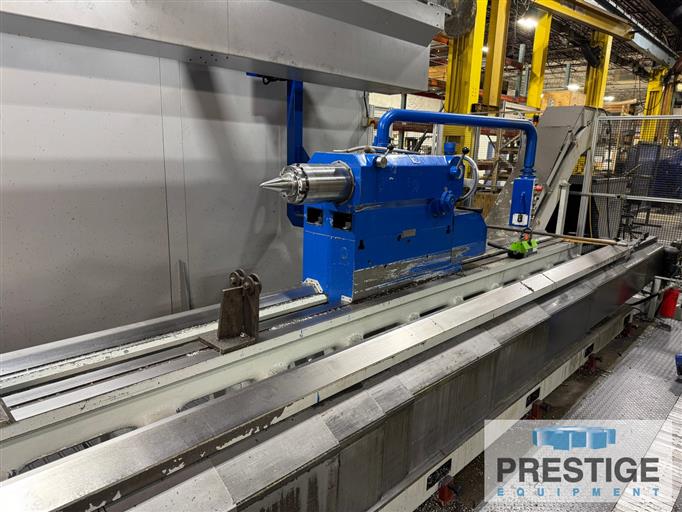

TAILSTOCK:
Quill Diameter
7.28"
Quill Stroke
11.81"
Taper of Center
Morse #6
Equipped With:

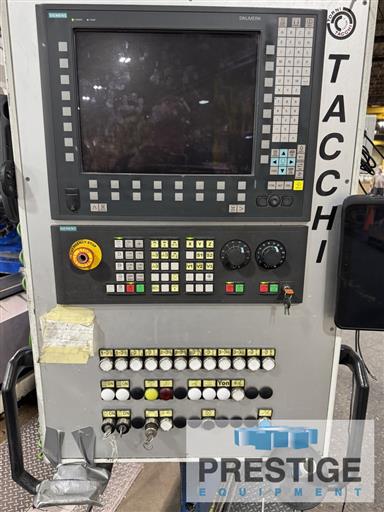

SIEMENS 840 DE Solution Line CNC Control

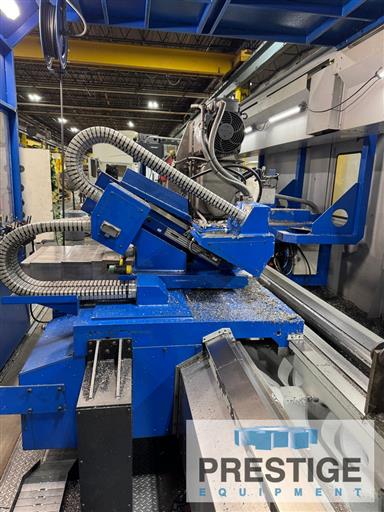

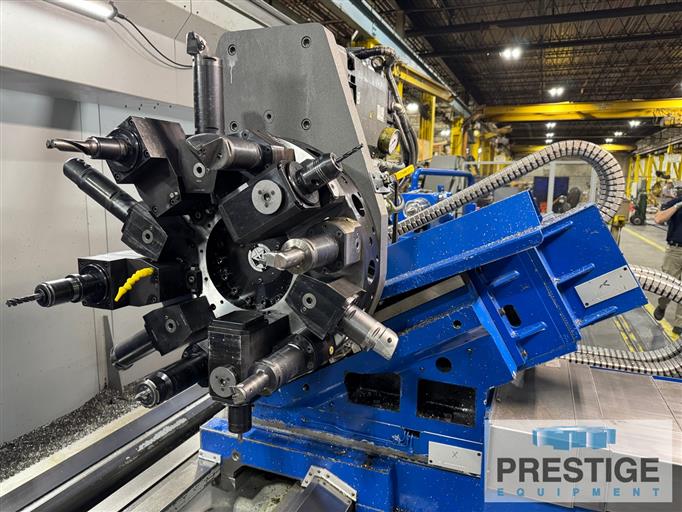

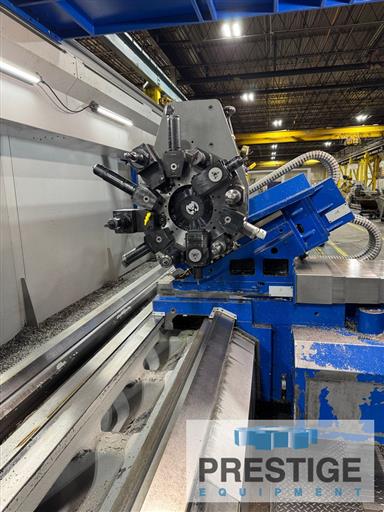

Baruffaldi TBMA 302/12 12-Station Disc Turret w/Live Milling
Heidenhain Scales on X & Z Axes

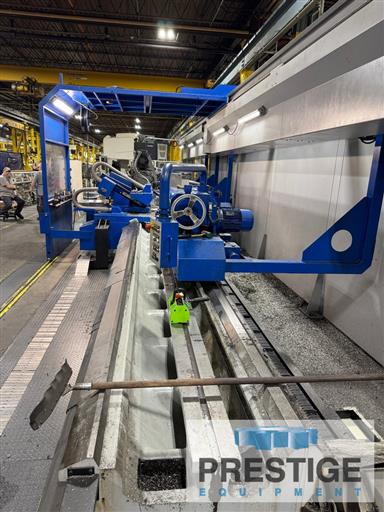

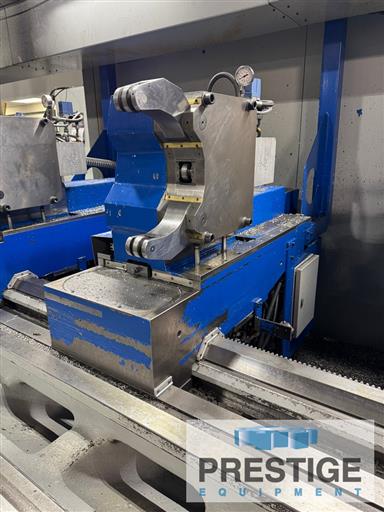

3-Morari Programable Self Centering Steady Rests w/Longitudinal Positioning
Manual 3-Point Roller Type Steady Rest

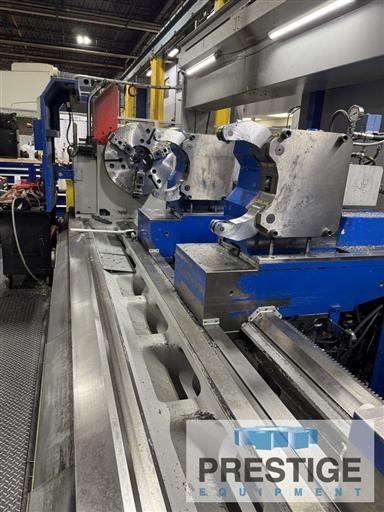

24.8" & 12.4" Rohm Chucks
Renishaw Tool Probe, TS13, RMP60
Carriage Can Pass Steady Rests and Tailstock
Coolant System for Turning & Milling Operations
Telescoping Steel Way Covers
Full Length Chip Conveyor
Automatic Lubrication System
460 3-Phase 60 HZ Electrics
NOTE:
Inspect Under Power
Features:
✓
Siemens 840 DE Solution Line CNC Control
✓
12-Station Heavy Duty Disc Type Turret w/Live Spindle
✓
Self Centering CNC & Manual Steady Rests
✓
Heidenhain Scales
✓
Live Milling w/ C & Y Axis
✓
3-Way Bed
